Version 2.0 Updates in the 2D Editor #
The updated 2.0 version Editor 2D Mode has two options:
- Draw Mode to create and draw designs.

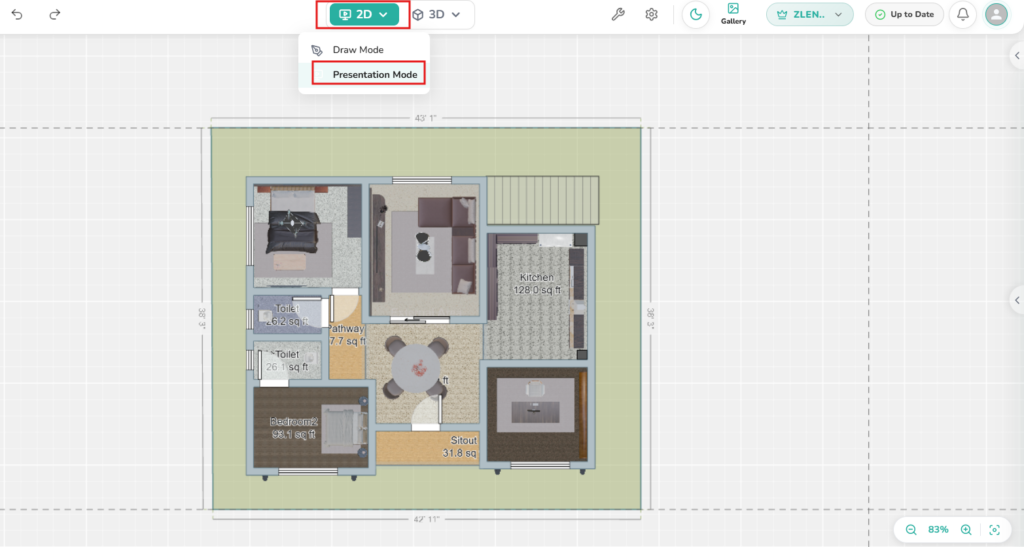

- Presentation Mode to view/present the assets placed in the 2D layout
2D Mode: Drawing #
To start Drawing in 2D Mode, At the top-right corner of the screen:

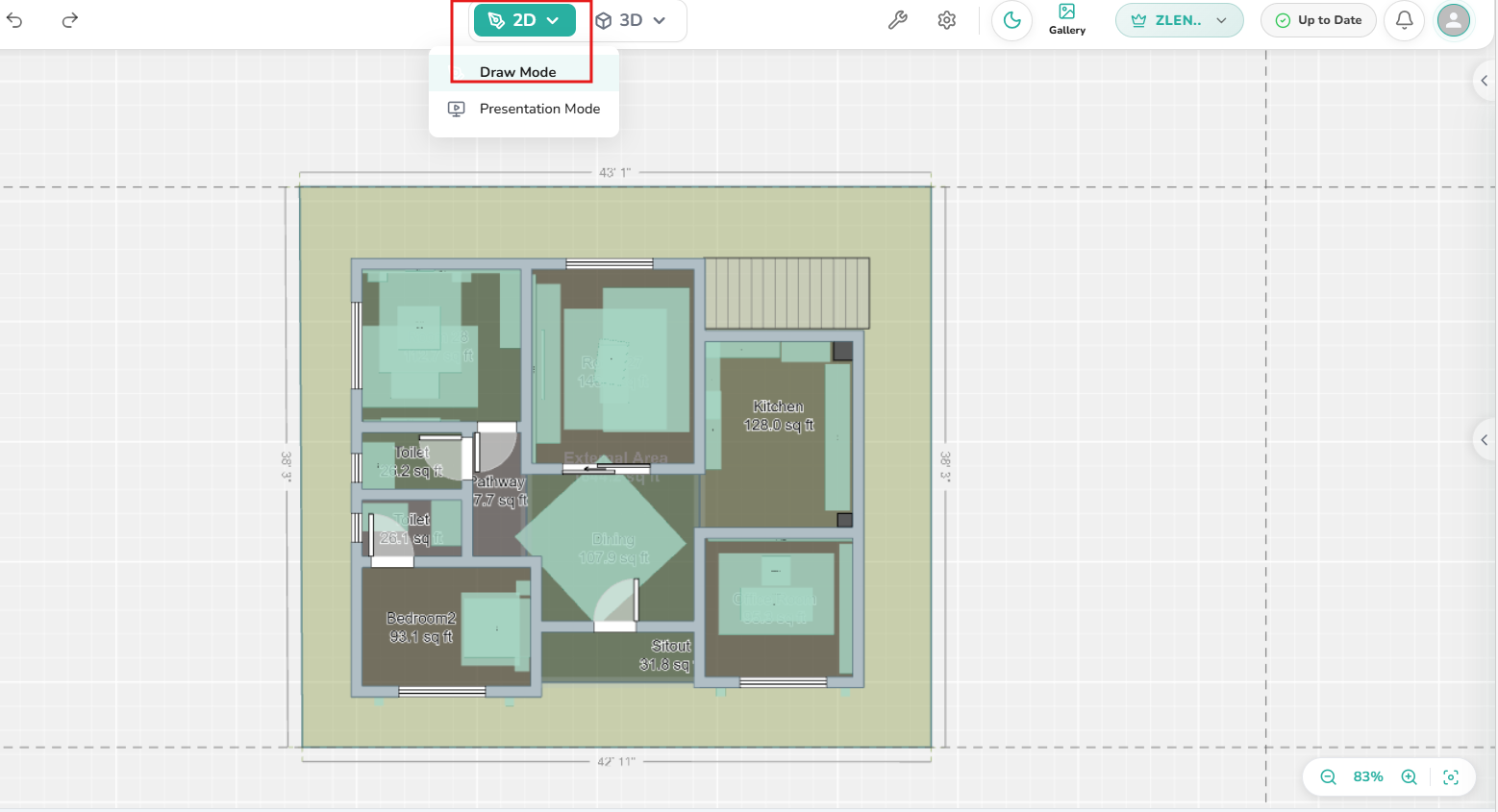

Select 2D Draw Mode (the selected mode will be highlighted in green). This ensures precise wall planning on a grid-based canvas.

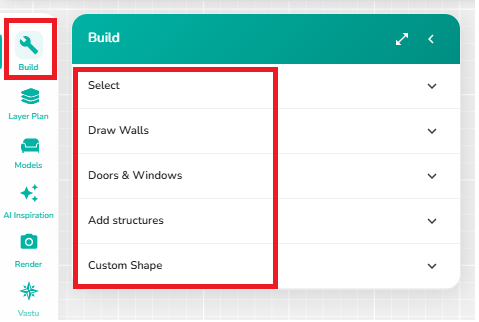

Click on the Build Tool icon on the Left side panel of the editor workspace.

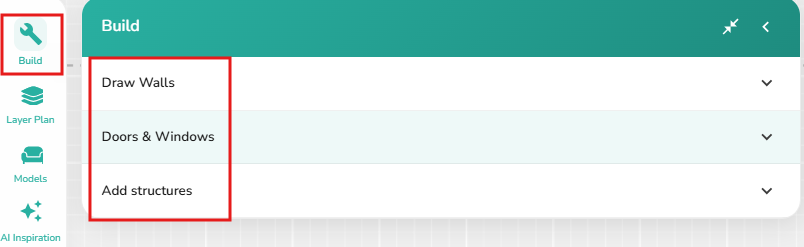

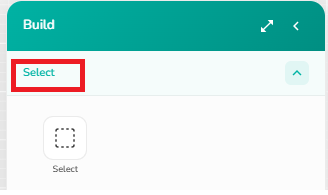

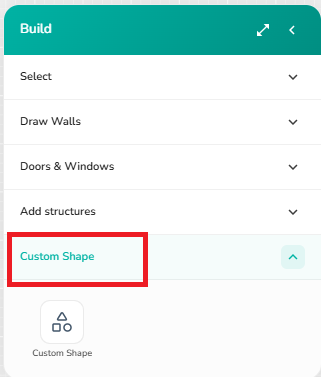

It will open 3 toolbox sets:
1. Draw Walls
2. Doors and Windows
3. Add Structures
Drawing walls #
Build Tool –-> Draw Walls –> Straight Line tool

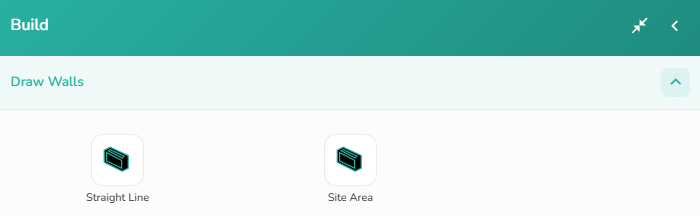

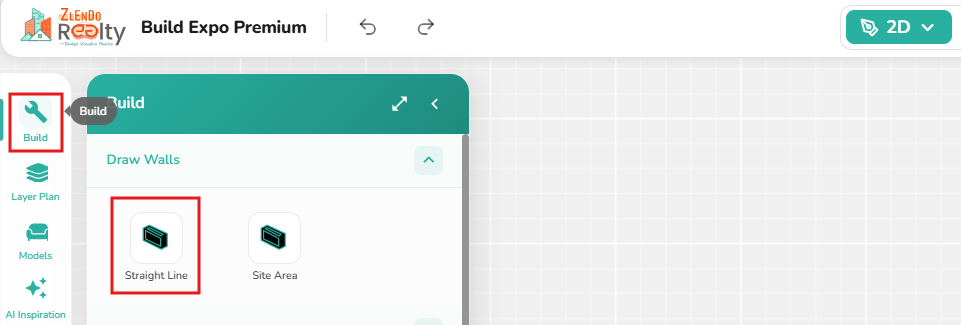

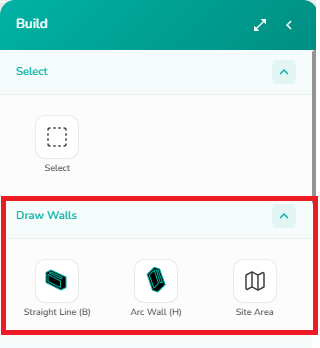

On the Build panel, click on Draw Walls. You will see two tools:
✅ Straight Line (for drawing walls)
✅ Site Area (for outlining plot boundaries)
👆 Select the Straight Line tool to begin drawing walls.
Start Point & End Point #

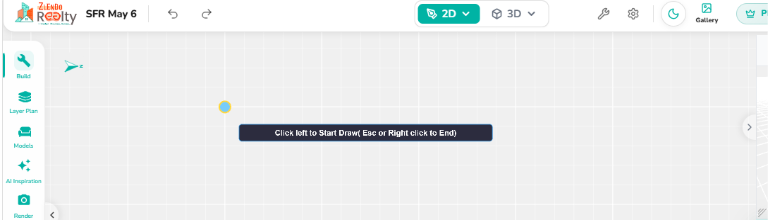

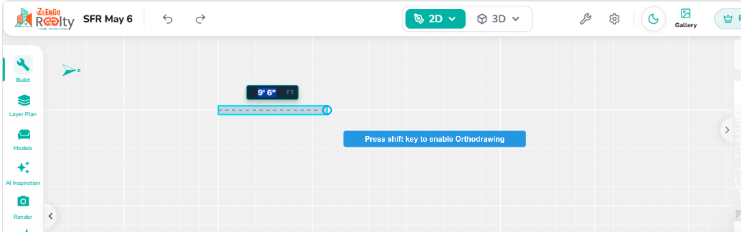

Click anywhere on the grid to set the starting point.
Move the cursor in the direction you want the wall and click again to set the endpoint.
A wall segment is created.
Using the Orthogonal / Non-Orthogonal Drawing Option #
Press the Shift key to enable Orthogonal drawing. This option allows you to draw perfectly straight horizontal or vertical walls
Activate Ortho Mode:
👆 Press the Shift key

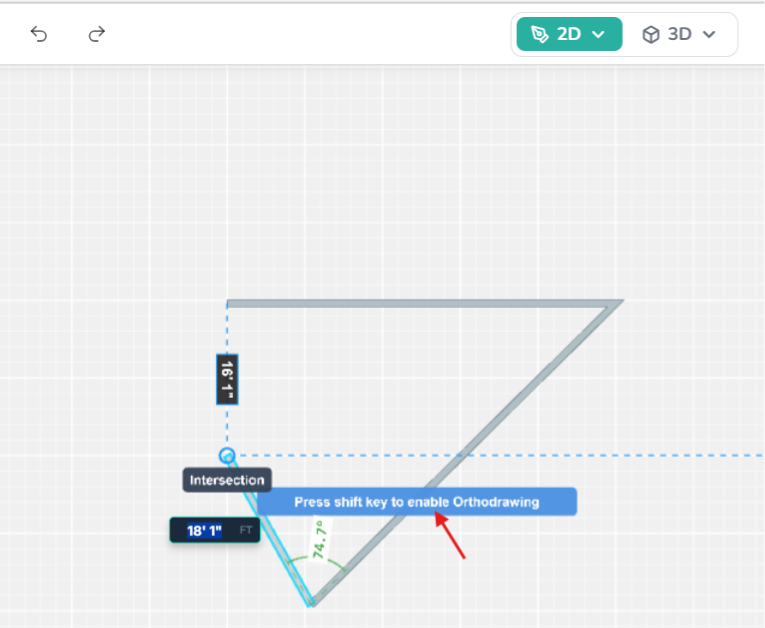

When you start drawing using the Straight Line tool, you will see the on-screen message: “Press shift key to enable Orthodrawing”
✔ When Ortho mode is enabled, drawing tool movement is restricted to:
– 0° (horizontal)
– 90° (vertical)

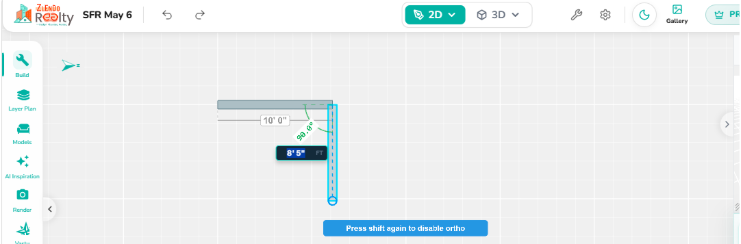

Disable Ortho Mode:
Press the Shift key again
You will see: “Press shift again to disable ortho”
✔ You can now draw at any angle freely
Continue Drawing Connected Walls & Close the Shape to Create a Room #
After completing one segment, click again from the previous endpoint and draw in any direction to create connected wall lines.
– The drawing tool maintains continuity for easy room or shape creation.
To complete a room or boundary:
– Extend the line and click back on the starting point
– The system snaps and closes the shape.
Snap & Precision Controls #
Zlendo automatically assists with accurate drawing: When you hover over a wall segment, the snap points will usually change your cursor or display a tiny geometric icon to show you what you are locking onto.
Common Snap Point Indicators
✛ Start/Endpoint Snap : Snaps to the very beginning or end of a wall segment.

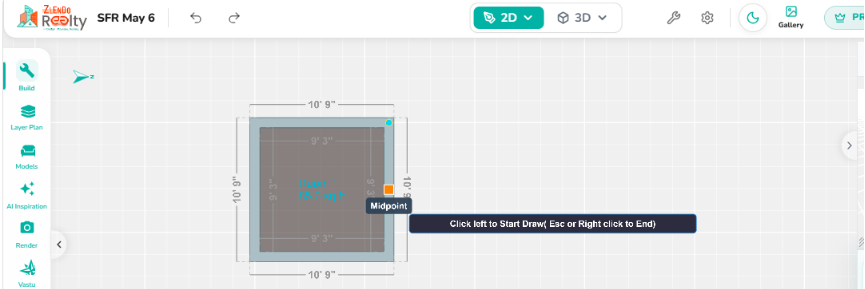

◼Midpoint Snap: Automatically finds the exact center-point of that specific wall segment
⁜ Intersection Snap: Helps connect walls precisely at corners

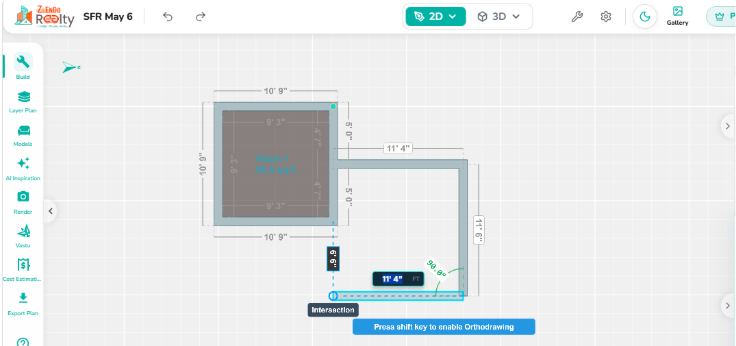

📏 Real-time Measurement: Wall length is displayed while drawing
📐 Angle Indicator: Shows the angle of the connected walls
📌 On-Screen Drawing Prompts
Dynamic length labels (e.g., 18’1″ FT)
Angle indicators (e.g., 77.7°)
Snap points such as “Intersection” / “Midpoint”
Wall Editing Tips
✅ Use Undo / Redo buttons (top ribbon) if needed
✅ Zoom and pan to adjust your view while drawing
2D Drawing Best Practices #
✅ Use Shift (Ortho Mode) for straight walls and clean layouts
✅ Use Free drawing (Ortho OFF) for Angled designs or irregular shapes
✅ Watch for snap indicators to ensure accuracy
✅ Check live measurements to match real-world dimensions
Adding Doors / Windows / Openings #
After making a room(s), the next step is to add items like doors & windows to rooms.
Build Tool –> Doors & Windows

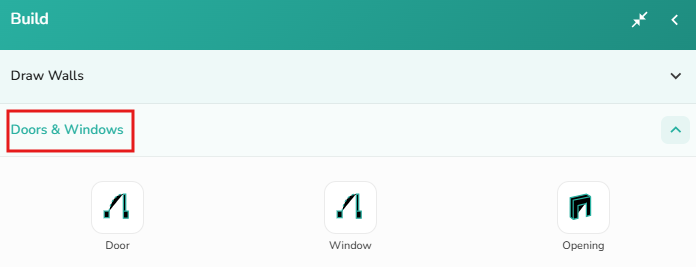

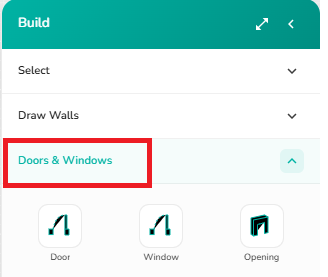

From the Build tool list, click on “Doors & Windows” (highlighted section). You will see three options:
✔ Door
✔ Window
✔ Opening (empty cut-outs like passages)
Select an Element #
Choose the element you want to add from the Build Tool:
✔ Click Door to place doors
✔ Click Window to add windows
✔ Click Opening for empty wall cutouts
Placing the Door or Window #
👆 Move your cursor over a wall and click on the desired location to place it.
The element will automatically snap to the wall.
📌 Placing Tips
✔ The element aligns to the wall direction
✔ Snap points help ensure precise positioning
Adjust Placement
After placing, you can:
✔ Drag along the wall to reposition
✔ Snap to edges or center for accurate alignment
Doors & Windows Best Practices: #
✅ Place doors near wall edges or room entries
✅ Use Snap ON for precise alignment
✅ Adjust height and thickness based on design needs
✅ Maintain consistent alignment (Center/Inside/Outside) for clean layouts
Adding Structures #
Build –> Add structures

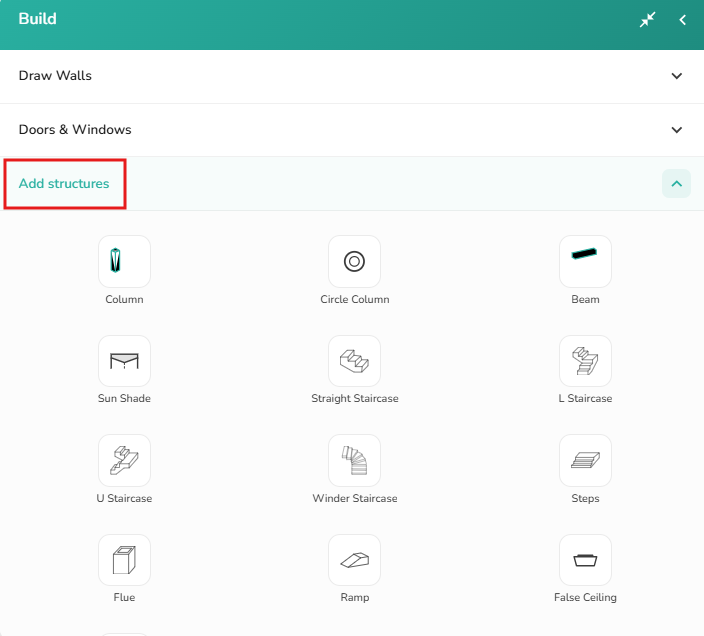

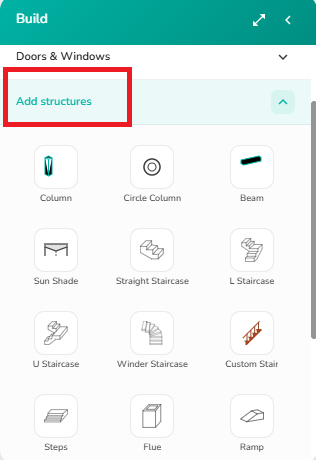

👆 Click on any icon from the library of structural elements
✔ Column
✔ Circle Column
✔ Beam
✔ Sun Shade
✔ Staircases (Straight, L, U, Winder)
✔ Steps
✔ Flue
✔ Ramp
✔ False Ceiling
How to Use Structure Types #
| Structure Type | Placement | Best Practices & Details |
| Columns | Inside rooms or at corners for structural support | Use circle columns for rounded designs |
| Beams | Between walls or columns | Align horizontally for support structures |
| Staircases & Steps | Based on layout flow and access requirements | Select type based on layout: Straight, L-shape, U-shape, or Winder. Position carefully to ensure proper access flow |
| Ramp | In entry/exit areas | Use for smooth elevation transitions |
| Sun Shade & False Ceiling | Above openings or rooms | Add for architectural detailing |
Placing the Structure #
Click on the structure you want to add.
Move your cursor over the layout grid or inside rooms.
Click again to place the structure at the desired location.
Adjust Position #
Click and drag the placed structure to:
Reposition within the layout
Align with walls, corners, or center points
Adding Multiple Structures #
Continue selecting and placing additional elements as required.
Combine different structure types for a complete design.
📌 Structure: Placement Behavior
✔ Structures align with the grid for accuracy
✔ Some elements (like beams) may align with walls automatically
Structure: Best Practices: #
✅ Use Grid & Snap for precise alignment
✅ Place columns at load points (corners/intersections)
✅ Align beams with walls or columns
✅ Ensure staircases have adequate space
✅ Maintain consistency in dimensions and alignment
Drawing in 2D Summary #
| Mode / Action | Description |
| 2D Mode | Start in 2D view |
| Draw Walls | Use Straight line Wall tool |
| Doors & Windows | Select and place on walls |
| Structures | Add columns, stairs, beams |
| Adjust Item Properties | Use the right-side panel to refine size and alignment of any item |
| Review | Use grid, snap, zoom |
Pro Tips for Efficient Designing #
✔ Always start with walls before adding elements
✔ Use Shift (Ortho Mode) for clean layouts
✔ Keep Snap ON for accuracy
✔ Maintain consistent dimensions
✔ Plan circulation spaces (doors, stairs) properly
✔ Regularly check layout in both 2D & 3D
