2.0 Editor: 2D Edit/Modify Asset Properties

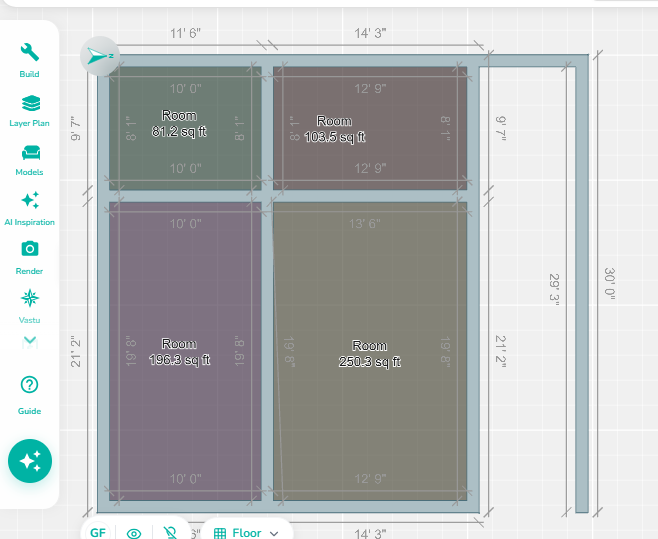

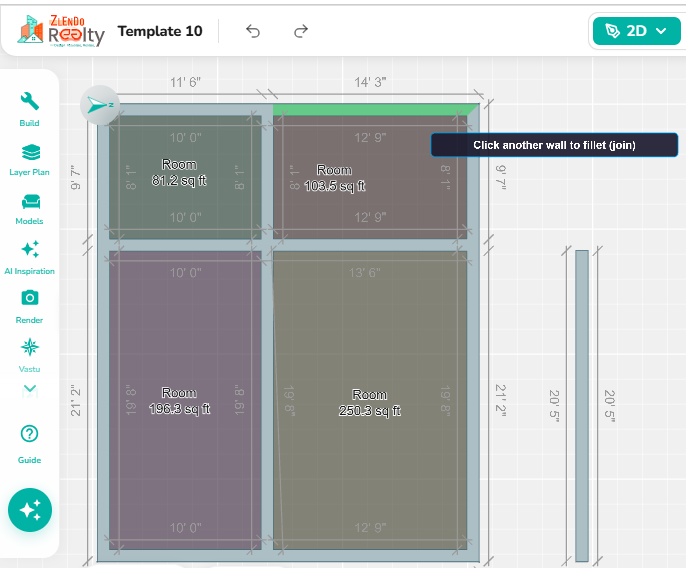

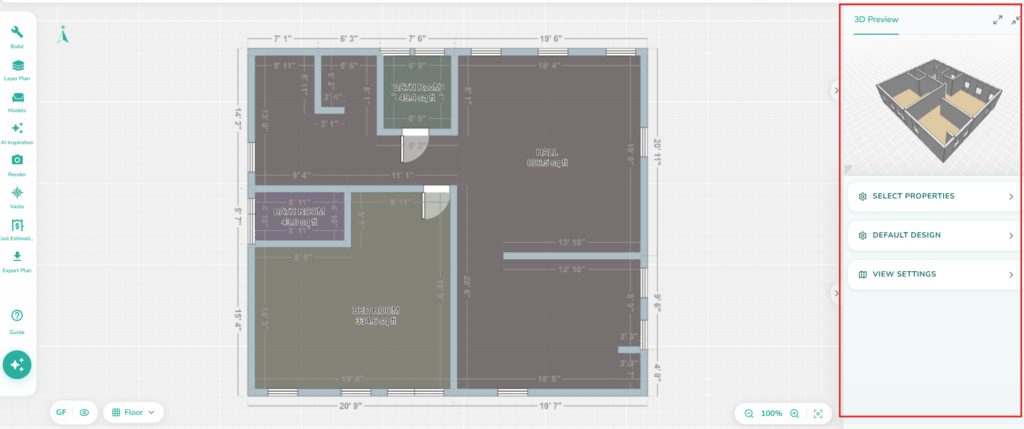

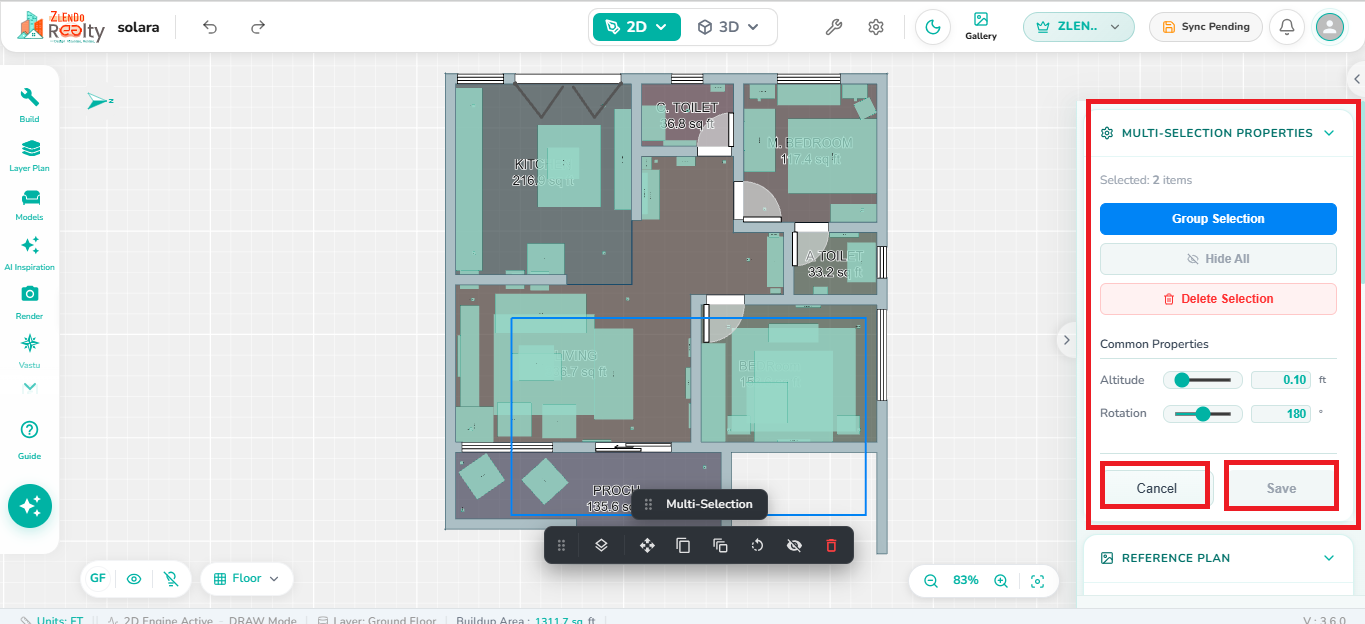

Zlendo Workspace Right-Side Panel #

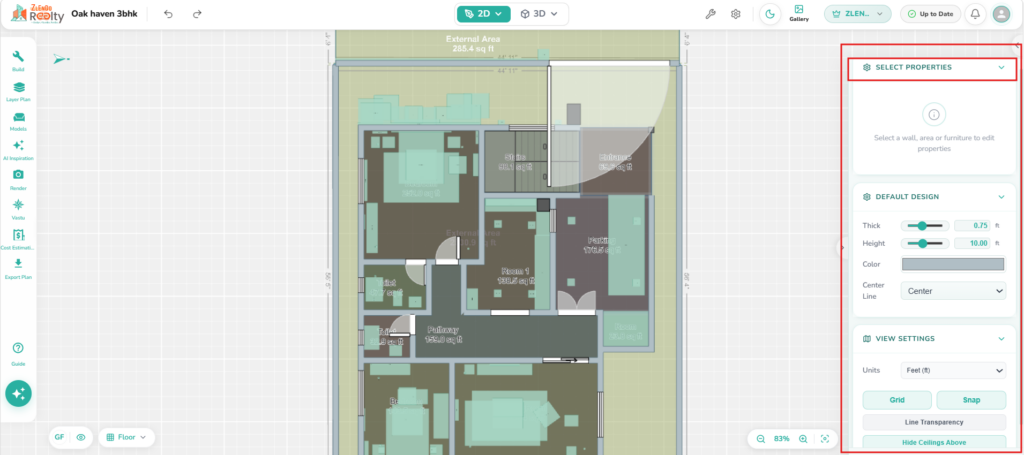

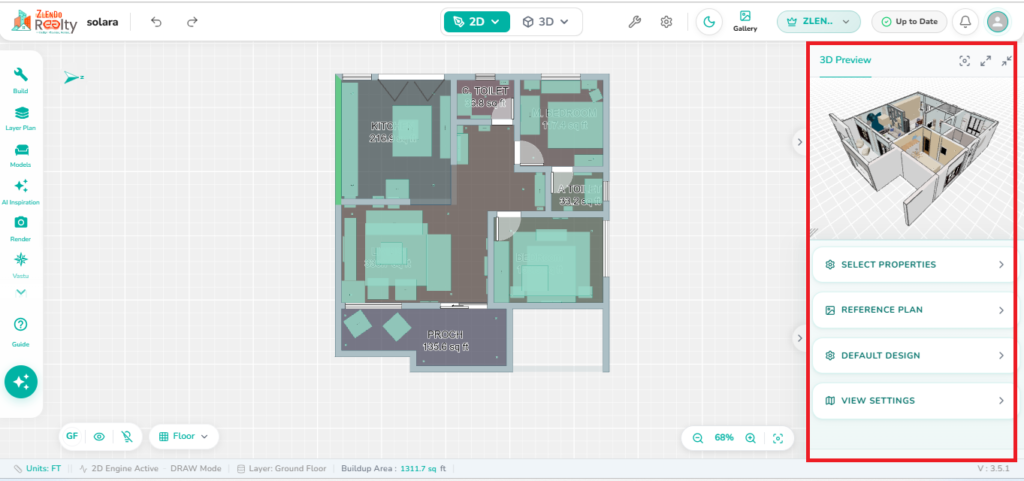

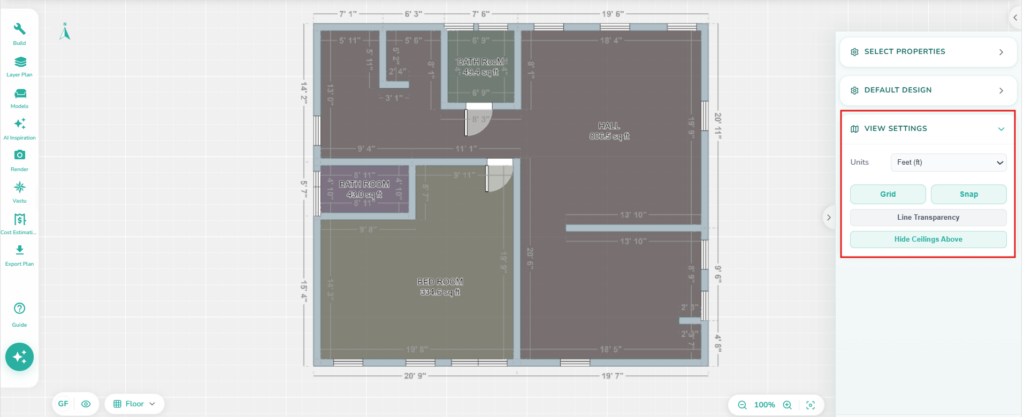

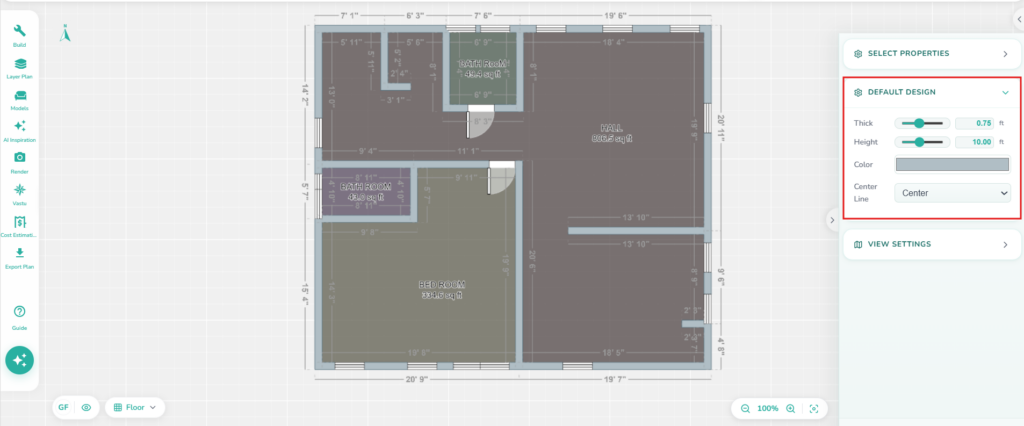

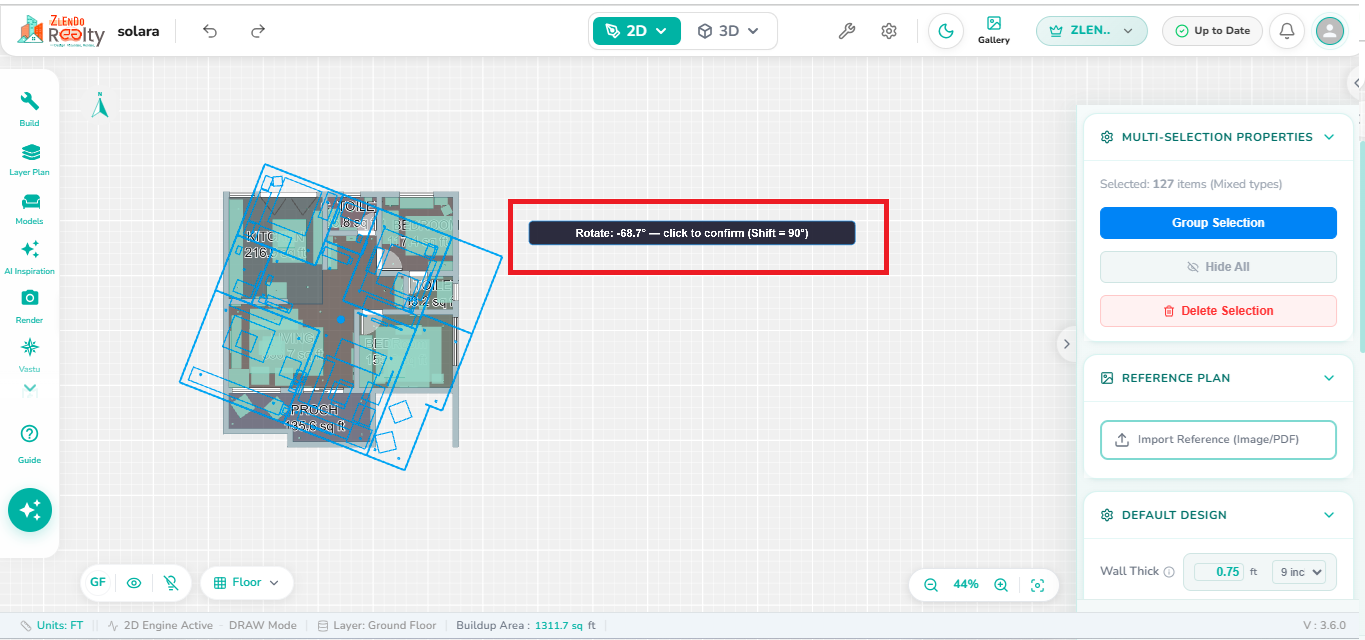

Based on the element selected in your 2D workspace, the right-side panel in Zlendo Realty Editor’s Workspace dynamically adapts to display: 2D/3D Preview box, Asset Properties box, Default Design measurements box and View Settings box.

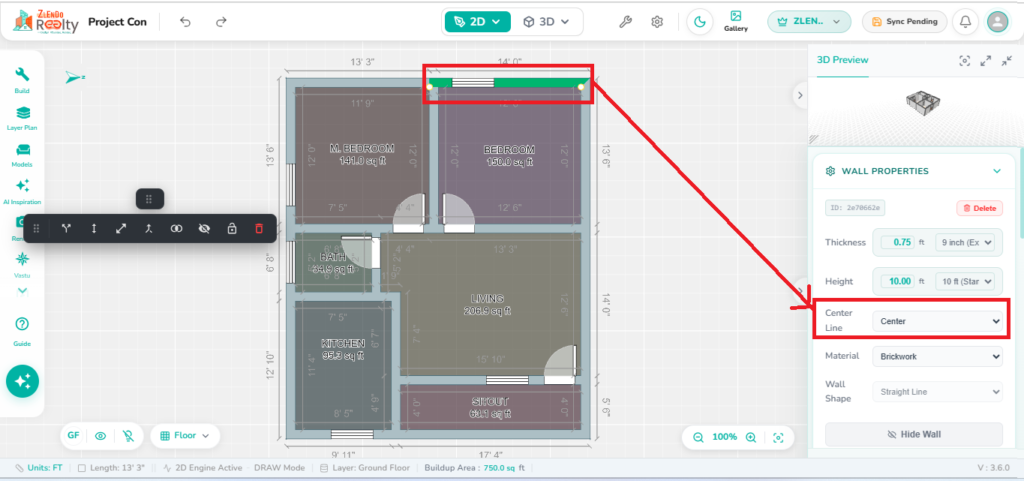

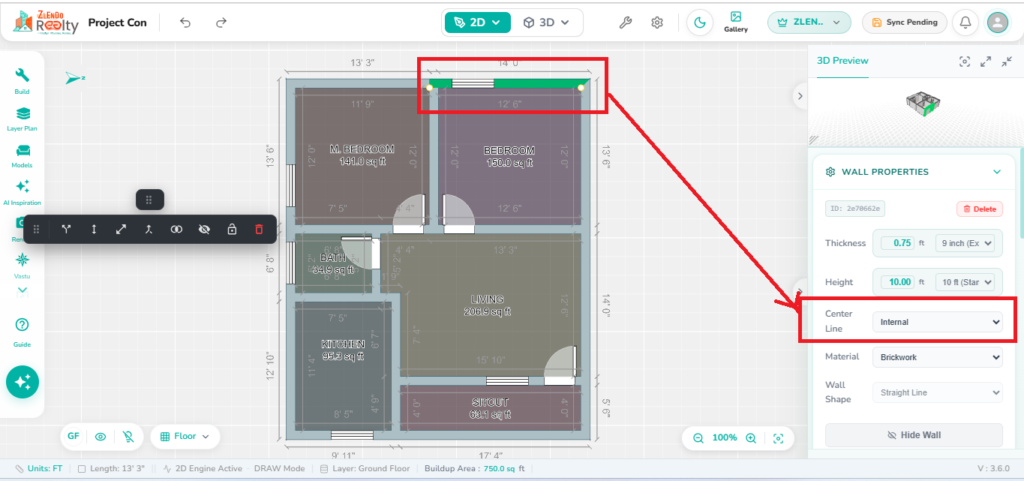

Right-Side Panel: Asset Properties Basic Editing #

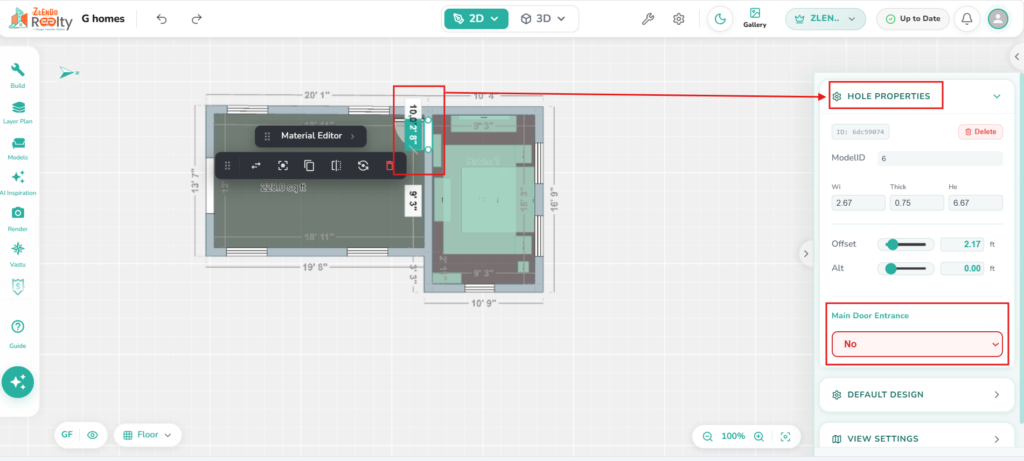

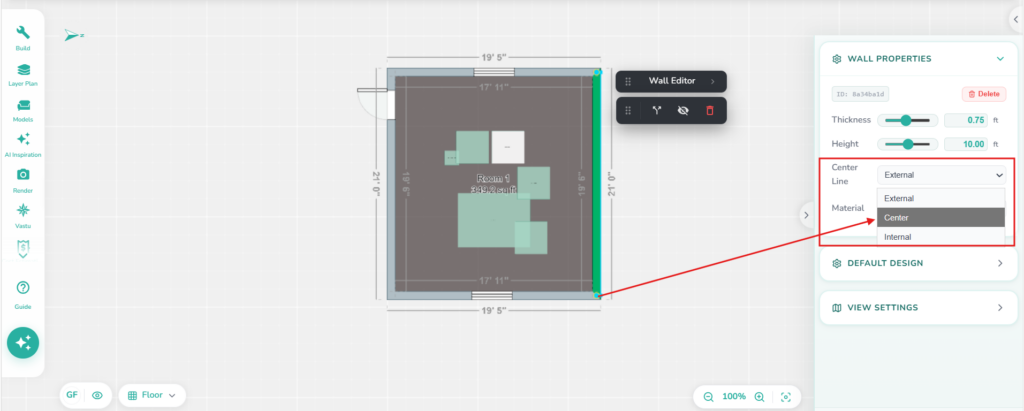

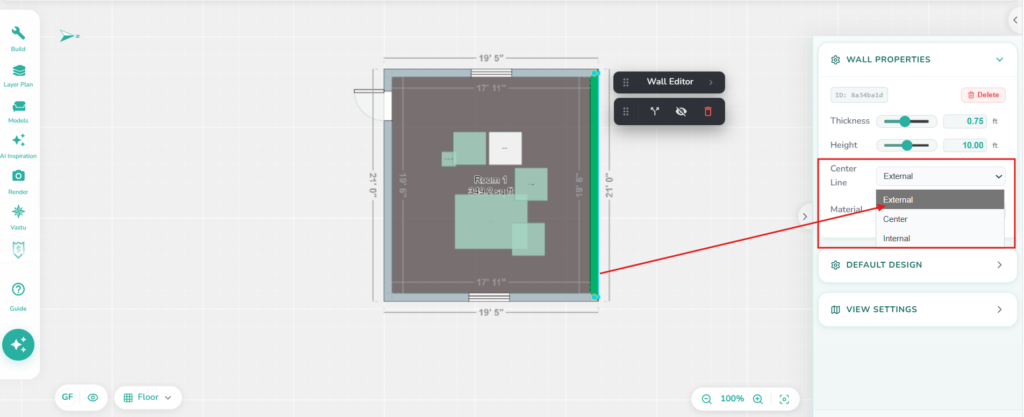

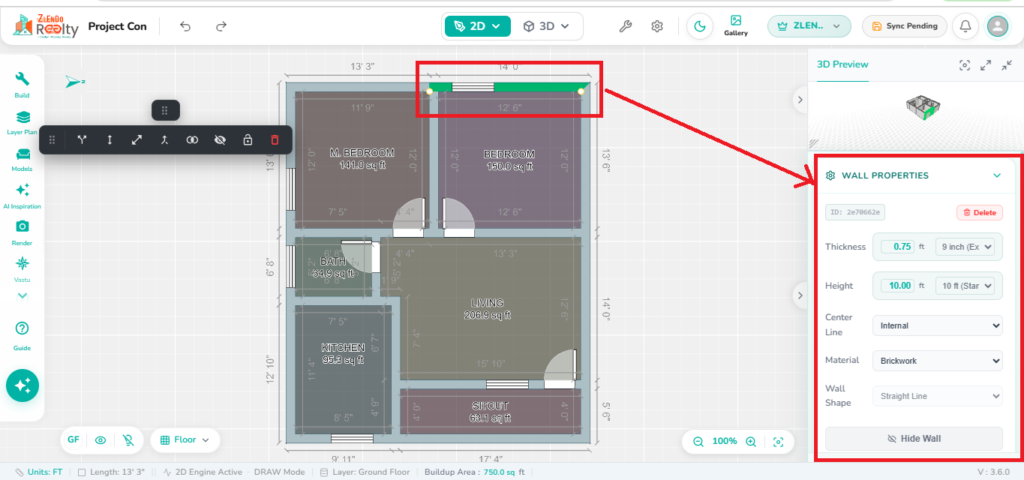

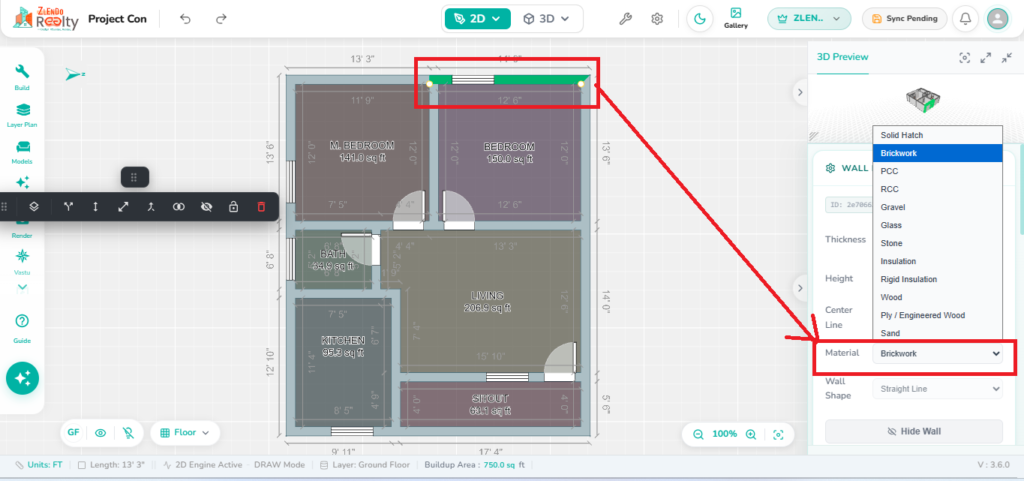

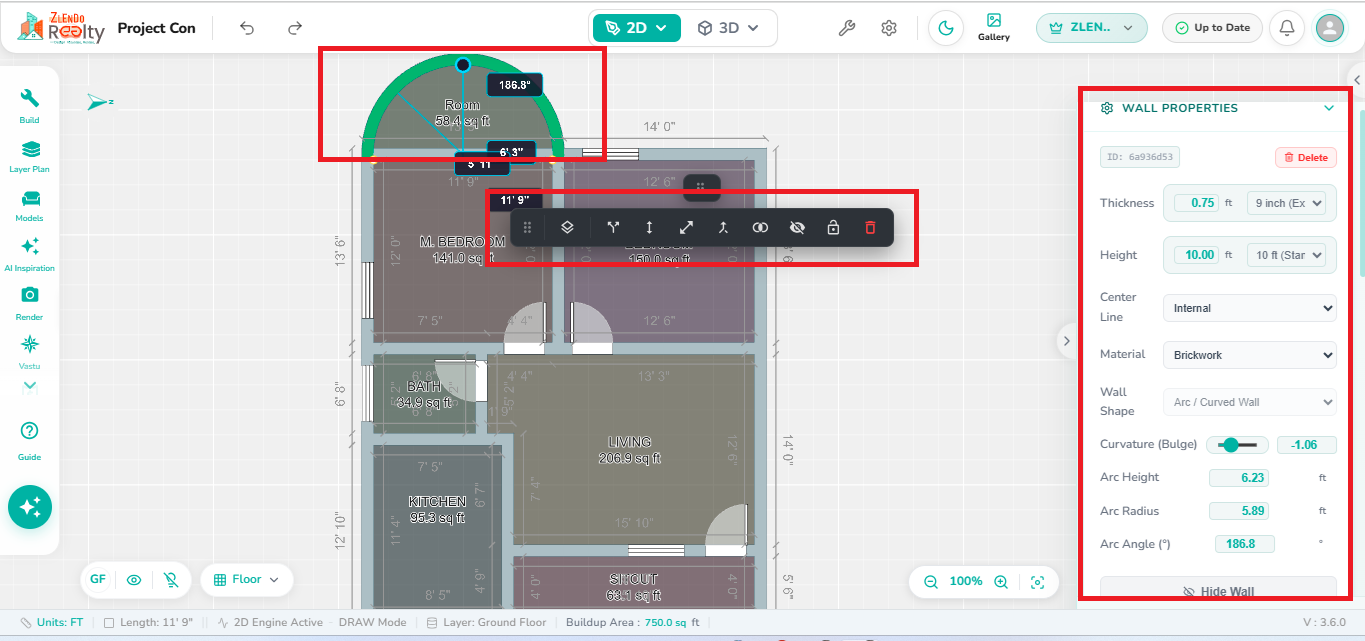

The Properties box in the Right-side panel dynamically adapts to different asset types (Wall/Doors/Windows [Hole], Structure/Rooms [Area]/item) displaying the selected asset’s dimensions, position coordinates, elevation etc. as applicable.

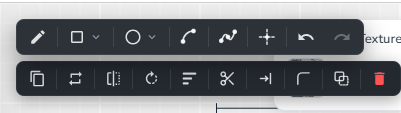

Wall & Structure / Floor / Ceiling / Material Editors #

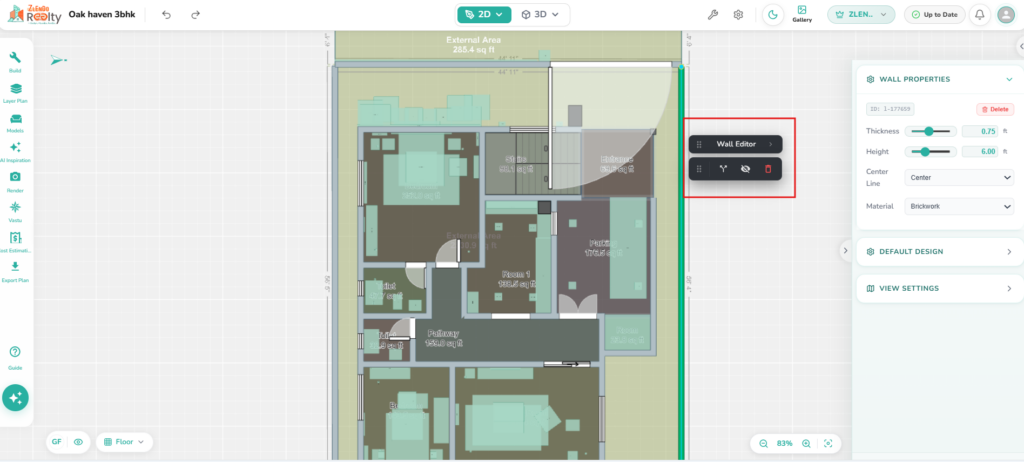

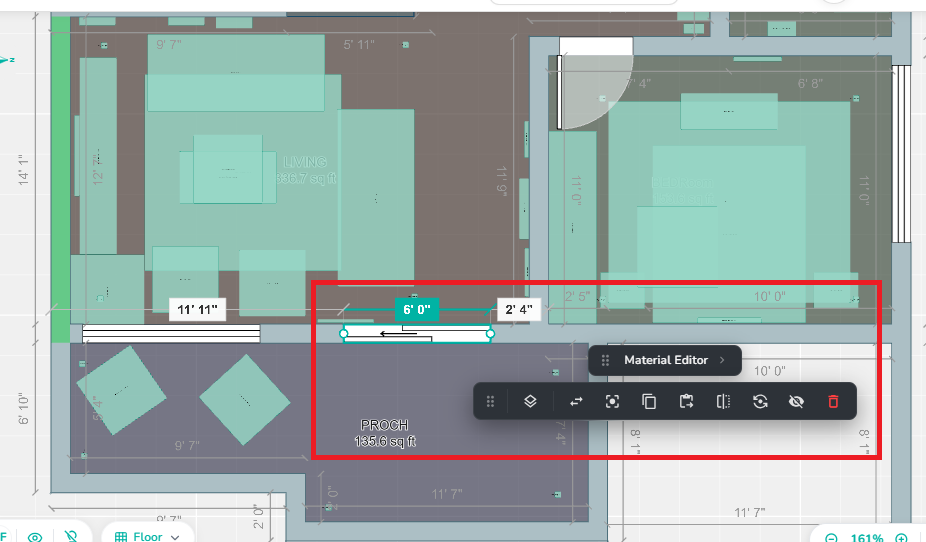

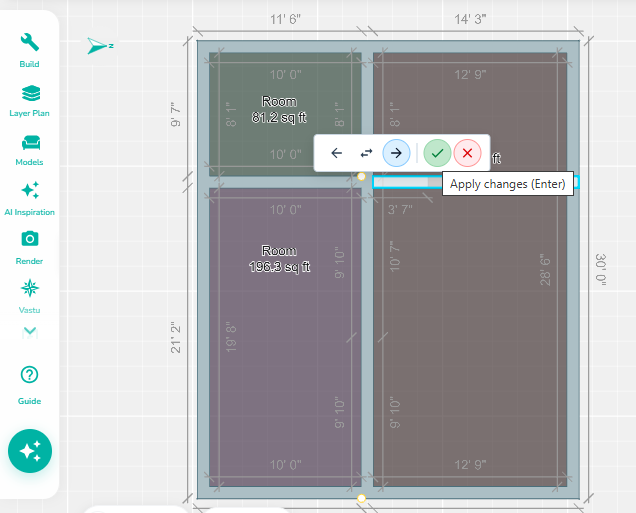

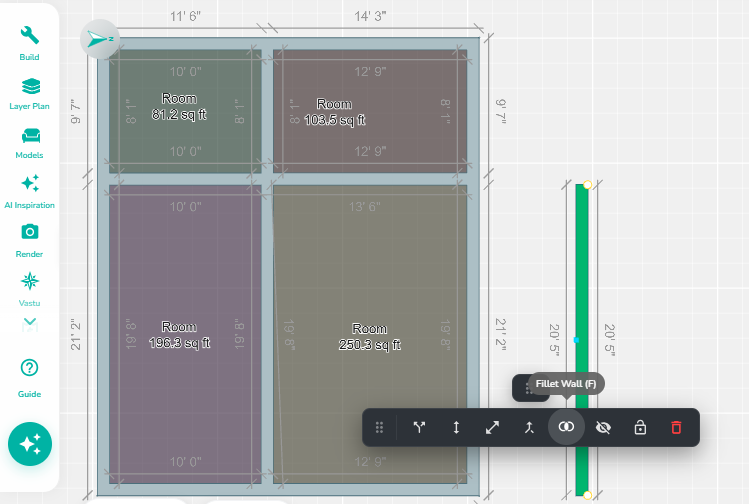

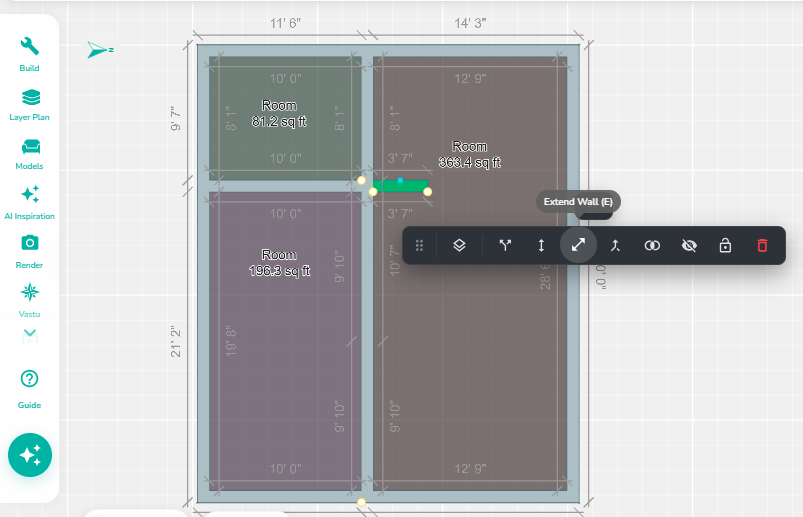

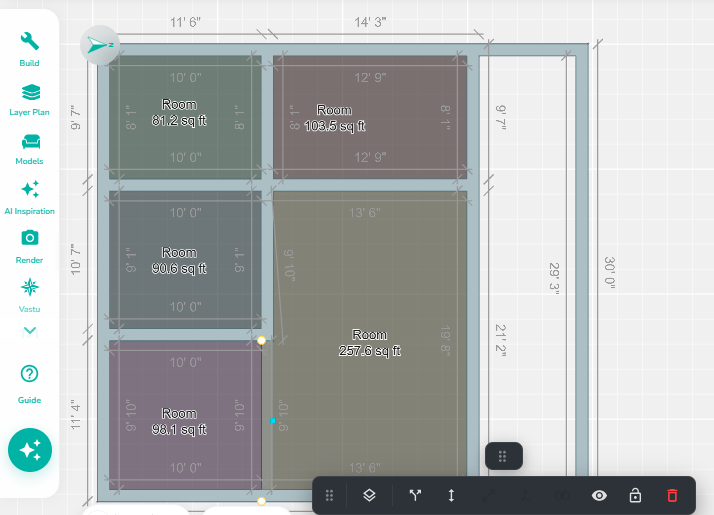

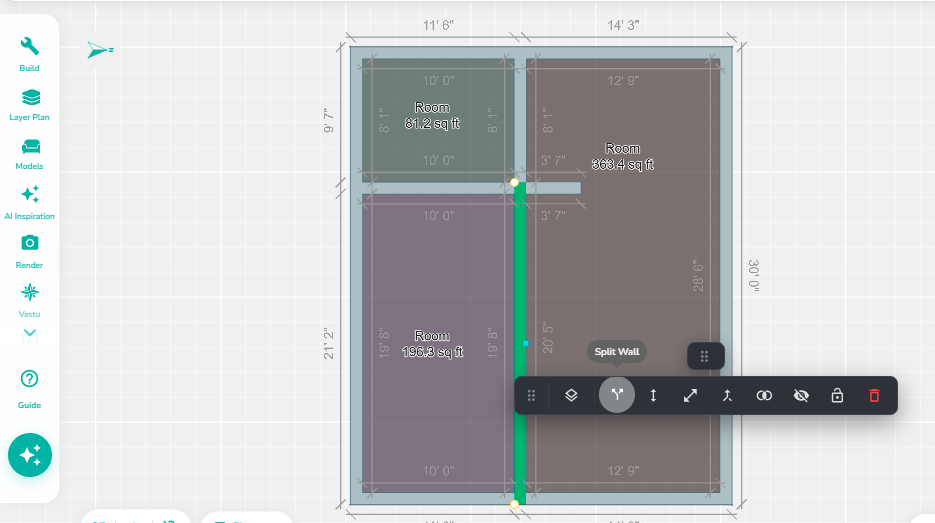

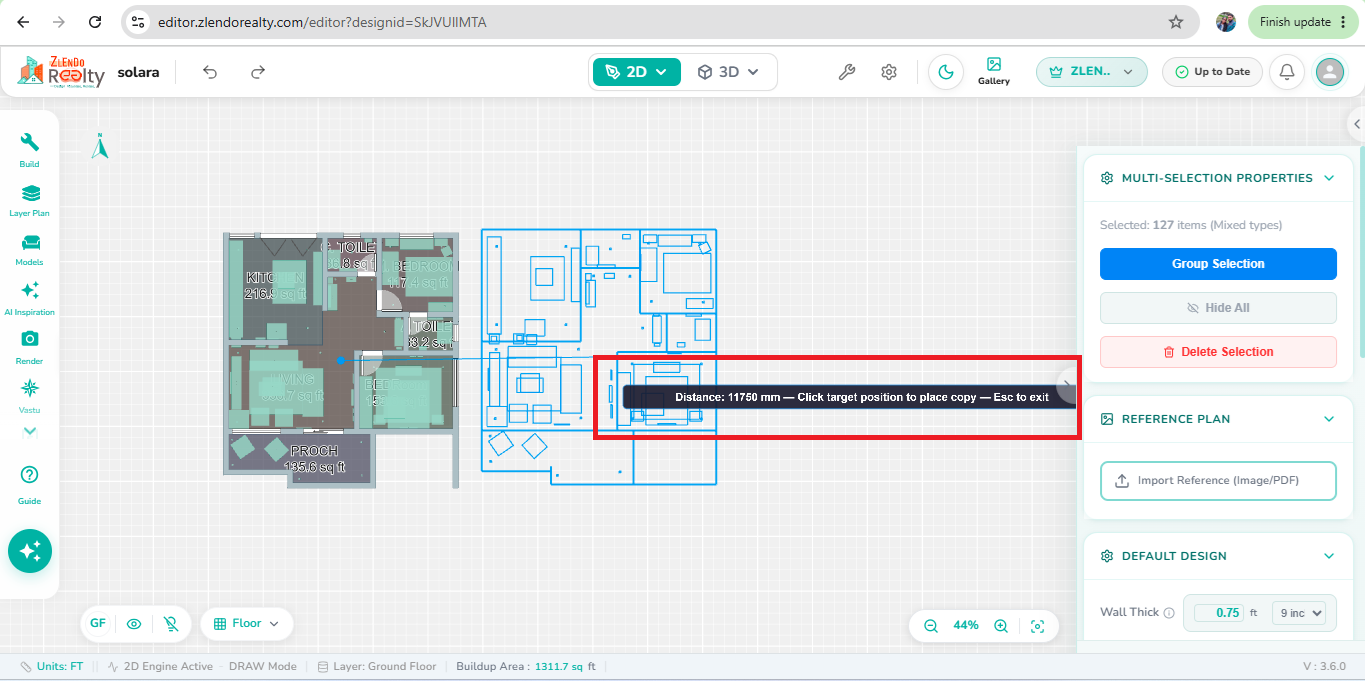

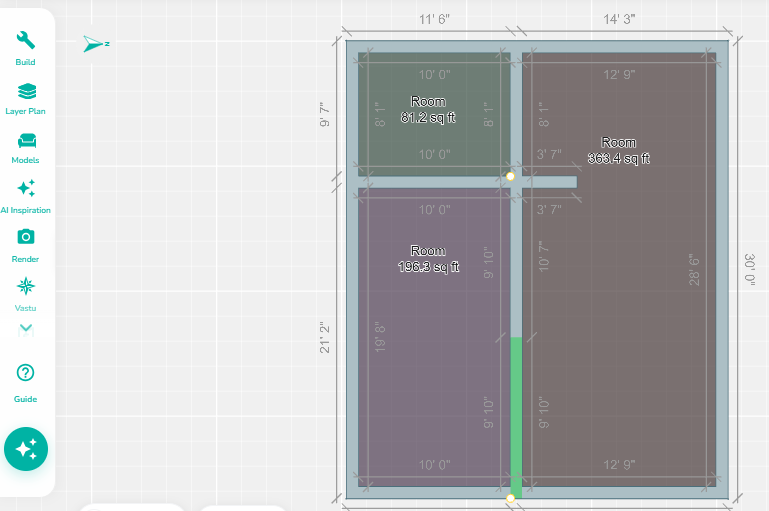

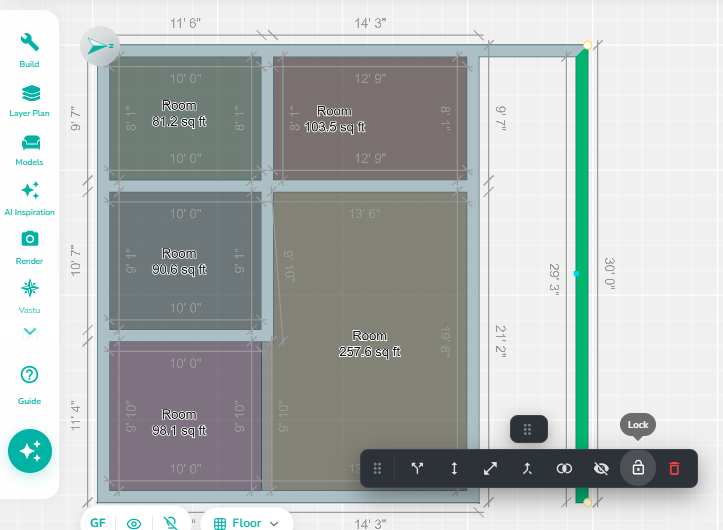

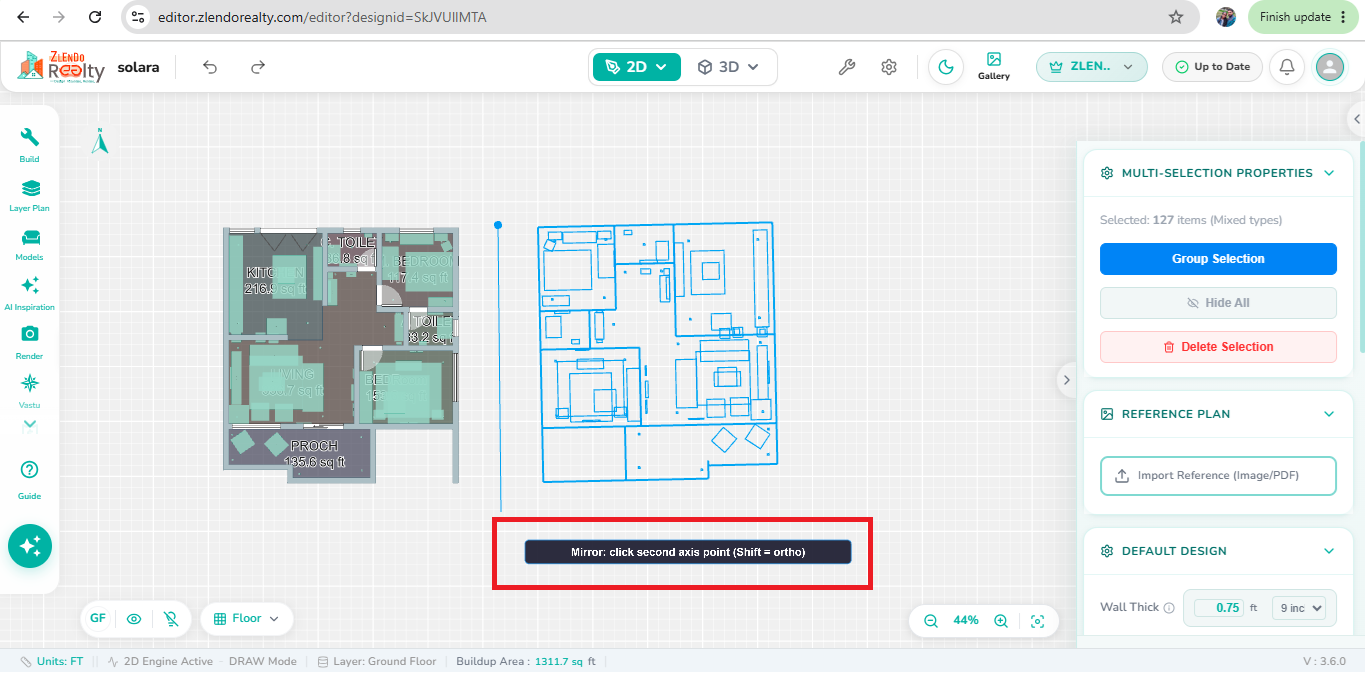

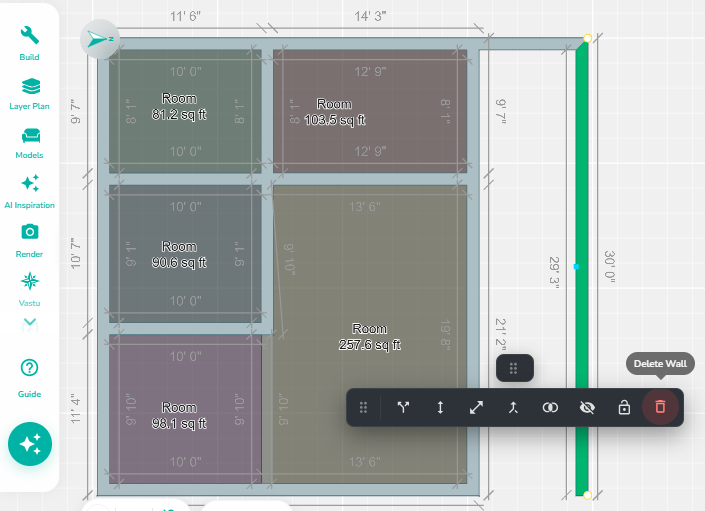

Depending on the type of element/asset you select on your floorplan, clicking the floating Editor bar next to it opens the asset’s Customization Editor tailored precisely to that asset type.

Accessing the Customization Suite #

Advanced Customisation Editor Type	Trigger Condition	Primary Functionality

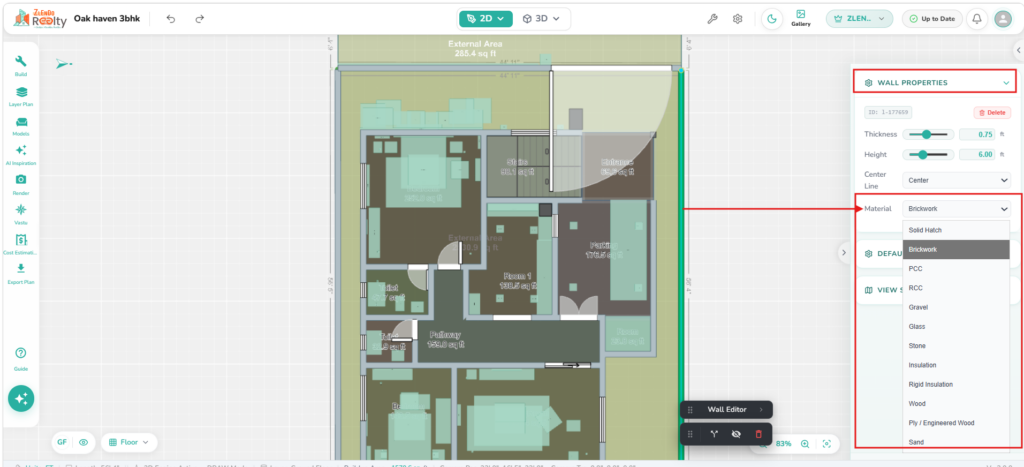

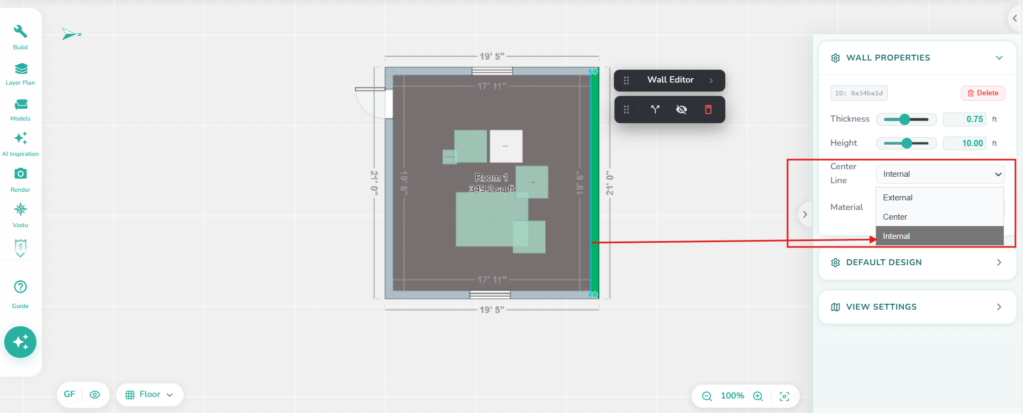

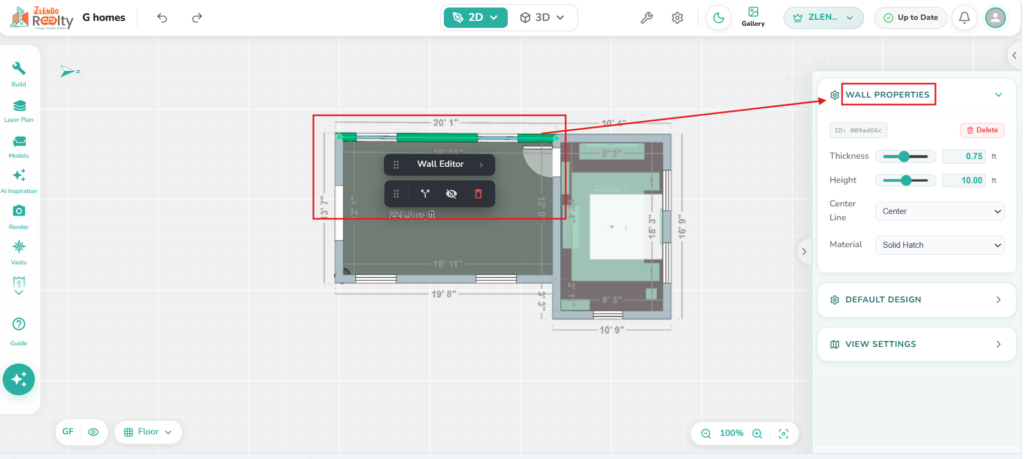

🧱 Wall Editor	Click on any Individual Wall Segment	Allows independent texture mapping for interior vs. exterior faces, custom vertical layout repeats, and non-uniform wall heights (e.g., creating gables, step-downs, or sloped surfaces).

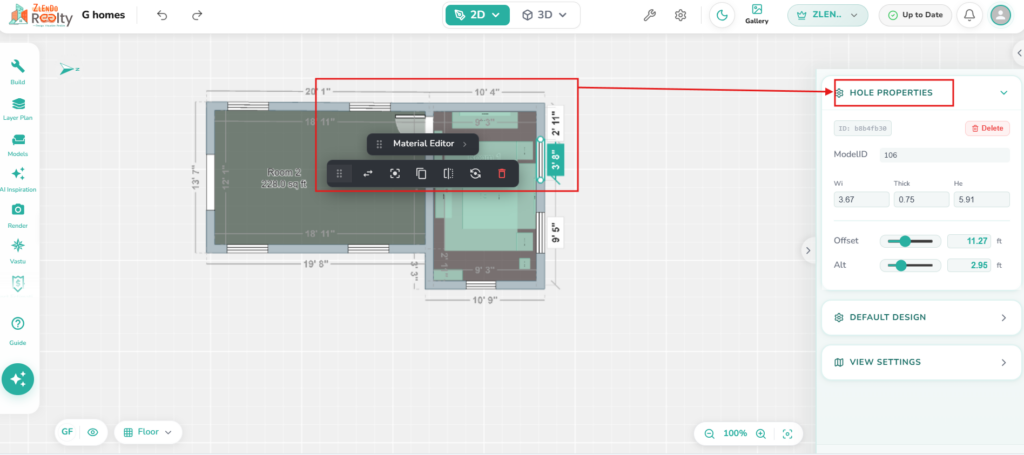

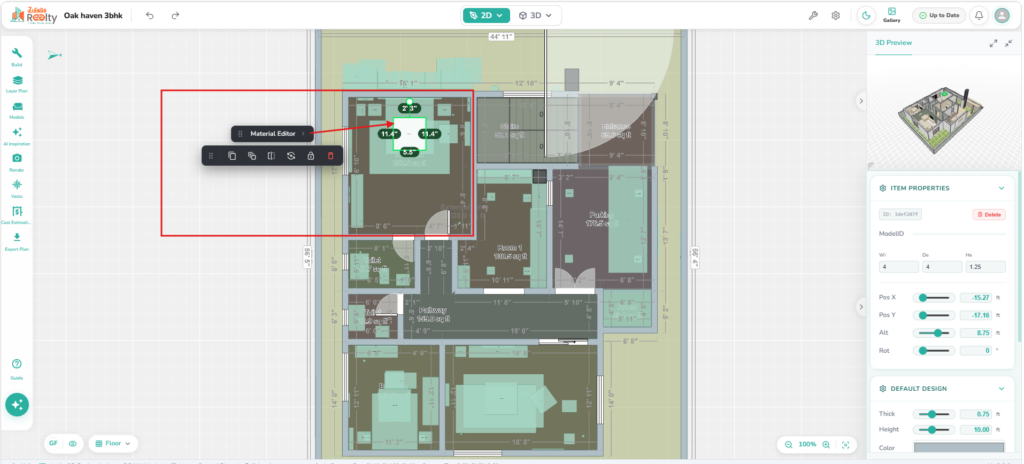

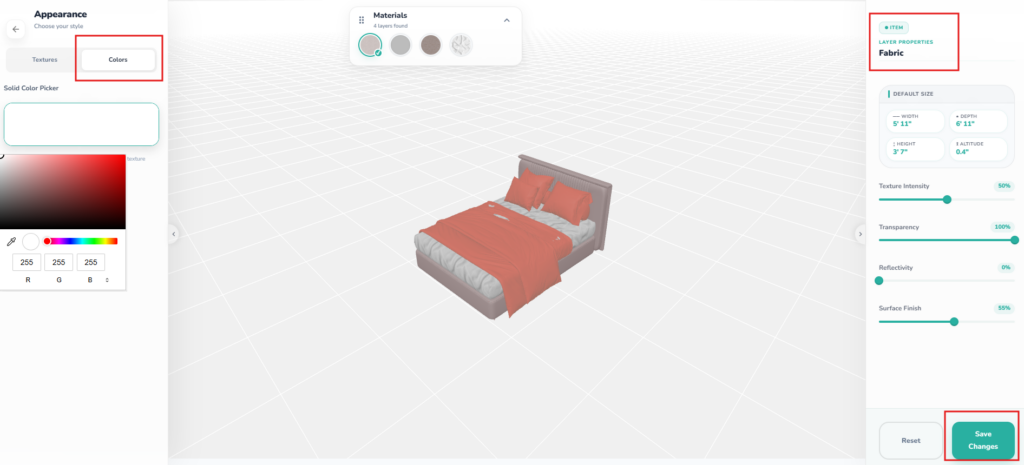

🪟 Materials Editor	Click on any Door, Window, Furniture, or Furnishing Model (e.g., Bed, Carpet)	Controls localized physical properties like texture intensity, alpha transparency blending, surface reflectivity, and customized hex color picking across distinct model components.
🪵 Floor Editor	Click inside an enclosed Room Area / Floor Boundary	Opens a dedicated spatial canvas focused on flooring configurations, calculating exact surface area/perimeter specs, and managing complex material tiles or custom paving orientations via the Paving Editor.
🏛️ Ceiling Editor	Click inside an enclosed room area or overhead plane while working in the Ceiling Layer	Opens an isolated overhead workspace to review room-specific area and perimeter metrics, apply paint colors or ceiling textures, and calibrate overhead pattern mapping.

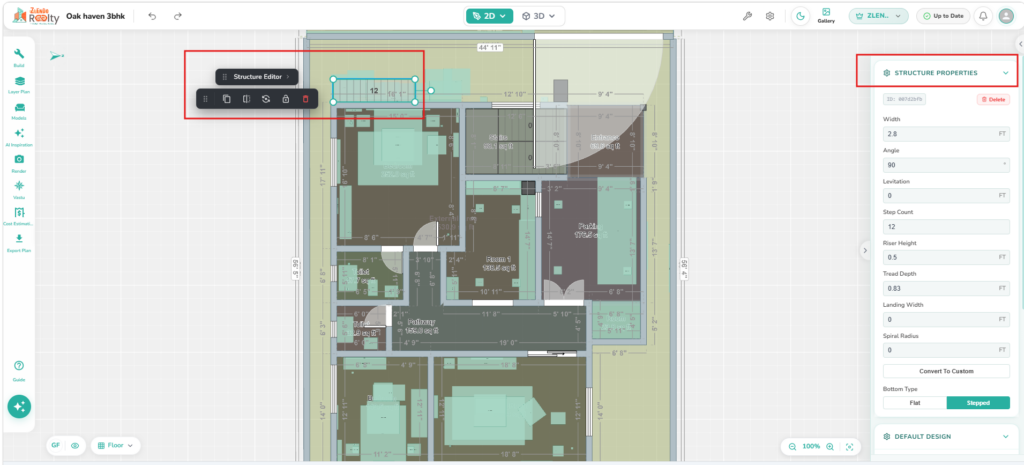

🏗️ Structural Editor	Click on any Structural Asset (e.g., Column, Beam, Staircase, or False Ceiling component)	Isolates core structural components to apply custom construction material finishes (concrete, brick, wood) or brand-matched solid color coats across specific structural layers.

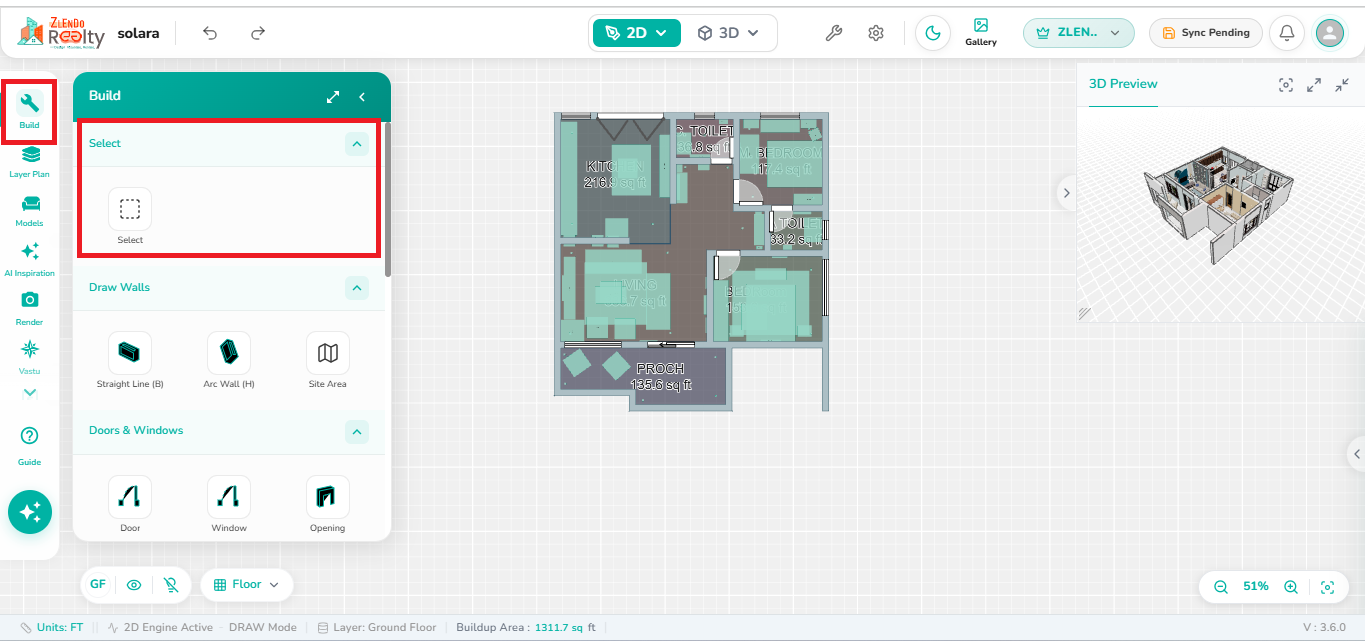

Select the Asset: In your 2D design workspace, click directly on the asset you want to customize.

Launch via Floating Toolbar: Look for the dark floating menu that instantly materializes next to your selection. Click on the prominent main button (e.g., Material Editor, Wall Editor, or Floor Editor).

Full-Screen Focus Mode: The editor will smoothly transition into a focused, full-screen detailing platform, temporarily tucking away standard canvas management toolbars so you can iterate on asset aesthetics with absolute precision.

🧱 Wall Editor #

Changing Wall Textures & Color #

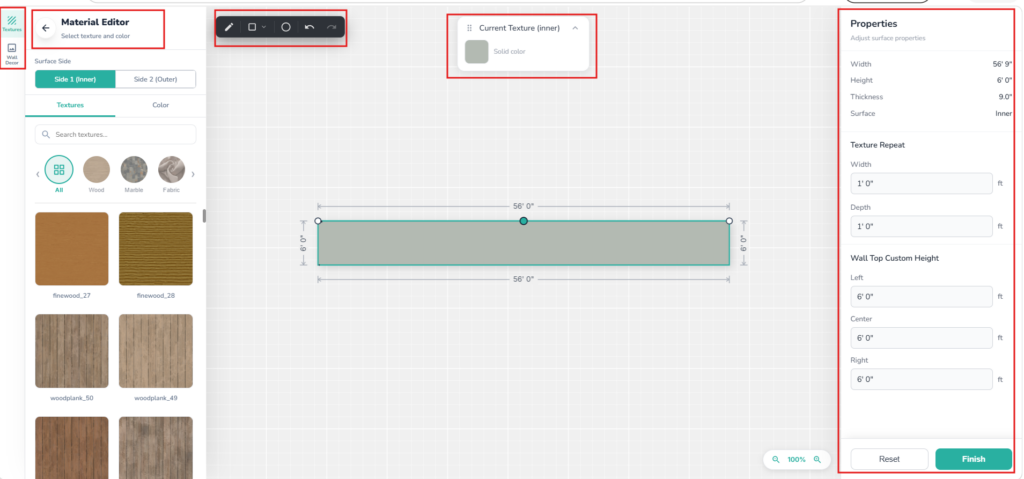

The advanced customization suite features a Textures tab that allows you to customize surface textures independently for each side of the walls, add pattern repeats & wall decor items, and set non-uniform wall heights.

Select Your Surface Side

Walls have two distinct faces. Before applying colors or textures, choose which side you are editing in the left panel:

Side 1 (Inner): Modifies the interior face of the wall segment.

Side 2 (Outer): Modifies the exterior face of the wall segment.

Browse and Apply Textures or Colors

Use the left sidebar inside the materials editor to style your selected surface side:

Textures Tab: Browse through categorized material thumbnails like Wood, Marble, or Fabric. Click any swatch (e.g., finewood 27, woodplank_50) to apply it instantly to the wall preview.

Color Tab: Switch to this tab if you prefer a solid paint finish rather than a textured material.

Current Texture Indicator: Look at the top-center card to instantly verify what material is currently active on your canvas.

If a textured material is active, navigate to the right-hand Properties panel to prevent the pattern from looking stretched or unrealistic:

– Width: Adjust how wide the texture pattern stretches before repeating.

– Depth: Adjust the vertical density or depth scaling of the applied pattern.

Configure Wall Top Custom Heights (Optional)

For standard layouts, walls remain uniform. However, if you are designing sloped roofs, gables, or step-up partitions, use the Wall Top Custom Height inputs at the bottom right to assign non-uniform vertical heights:

– Left: Sets the absolute height at the starting endpoint of the wall segment.

– Center: Controls the height at the midway vertex.

– Right: Sets the absolute height at the terminating endpoint of the wall segment.

Save or Reset Your Work

Reset: Click the white button at the bottom right to discard your recent surface alterations and revert to the baseline wall properties.

Finish: Click the green button to lock in your custom textures and dimensions and return to the main 2D workspace canvas.

Adding Wall Decor #

The advanced Wall customization editor suit features a Wall Decor tab that allows you to mount decorative assets, doors, moldings, and art sets directly onto a wall face. This guide explains how to accurately position and scale vertical decorations on your selected surface side.

Place an Asset onto the Wall

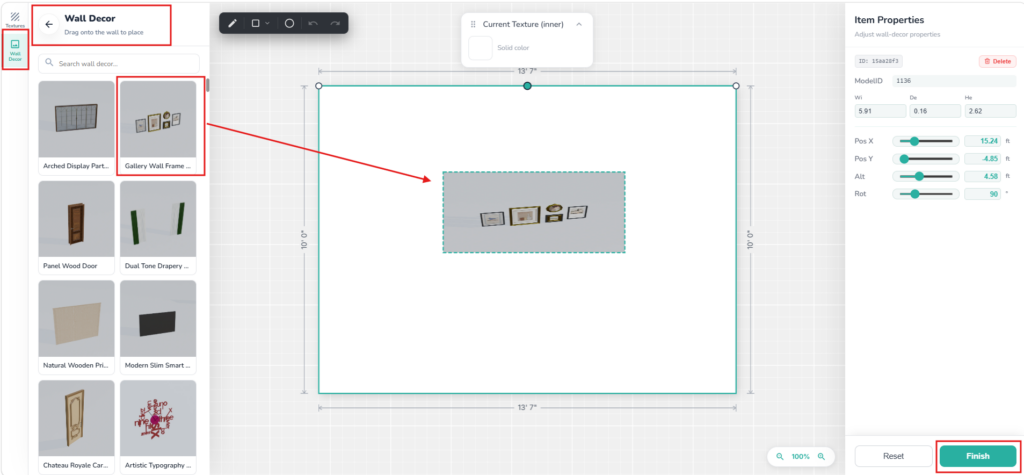

Browse the item cards in the left panel to find accessories like the Gallery Wall Frame Set, Panel Wood Door, or Modern Slim Smart TV.

Click and drag your chosen item from the sidebar directly onto the central wall preview canvas.

Once dropped, a dashed boundary box will surround the asset, indicating it is active and selected for editing.

Configure Placement & Dimensions (Item Properties)

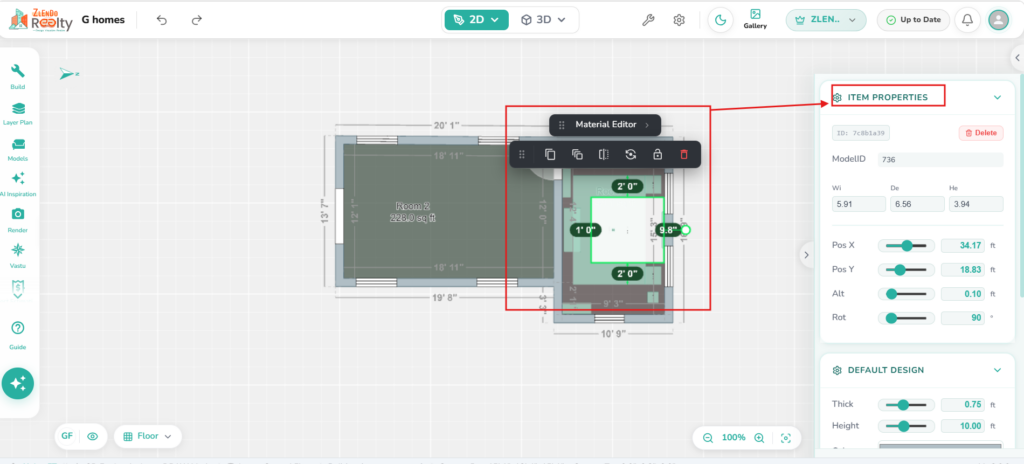

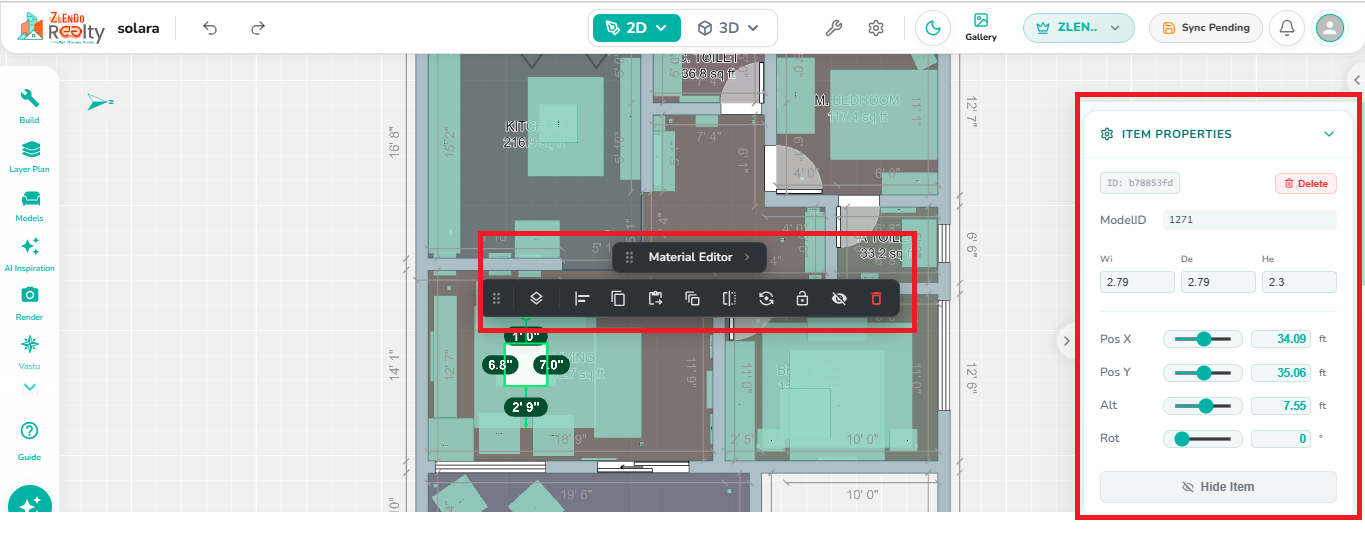

When an item is active on the wall face, the right-hand Item Properties panel updates to manage its precise physical placement vectors:

ModelID / ID: Identifies the system asset parameters and unique component layer tag.

Dimensions (Wi / De / He): Adjust text boxes to scale the object’s Width across the wall, Depth (how far it projects outwards from the wall face), and vertical Height.

Pos X / Pos Y: Use these precision sliders to slide the item left or right across the horizontal axis of the wall surface.

Alt (Altitude): Adjust this slider to change the height elevation off the floor lines (e.g., hanging a frame perfectly at eye-level or positioning a baseboard fixture right against the floor boundary).

Rot (Rotation): Rotates or tilts the asset orientation angles relative to the wall backing.

Save or Discard Changes

Reset: Click the white button at the bottom right to flush out any newly dragged decor additions or adjustments made during this edit session.

Finish: Click the green button to lock your artwork, doors, or panels seamlessly to the wall structure and return to your primary 2D layout workspace.

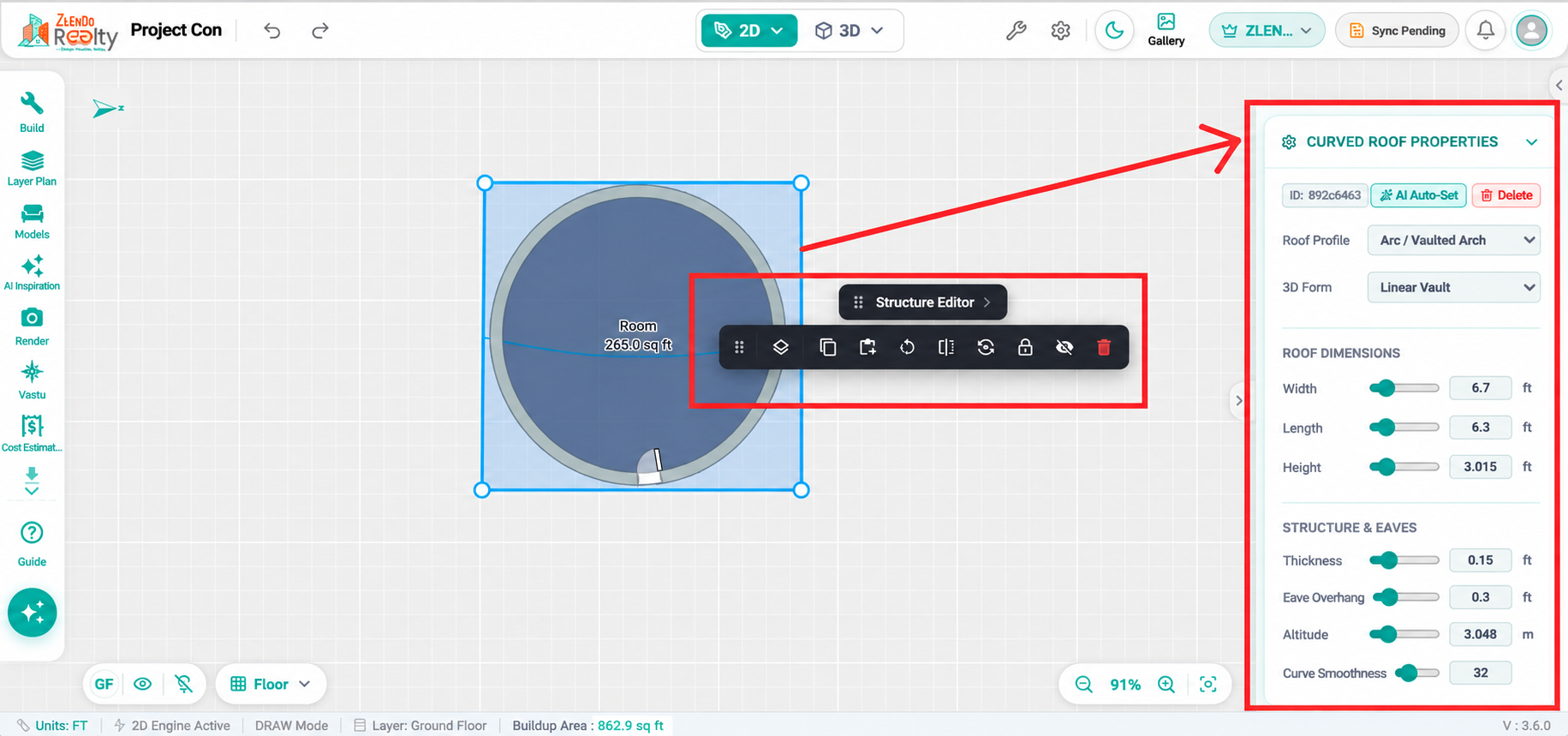

🏗️ Advanced Structure Asset Editor #

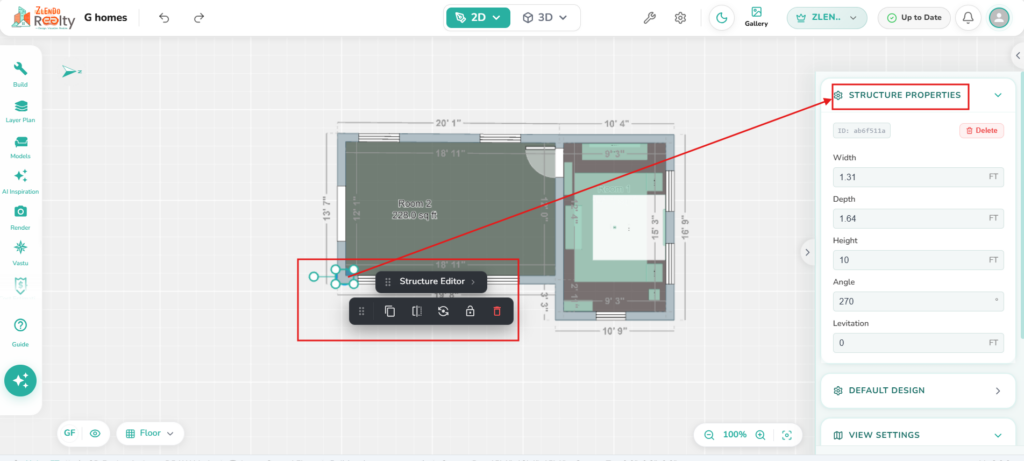

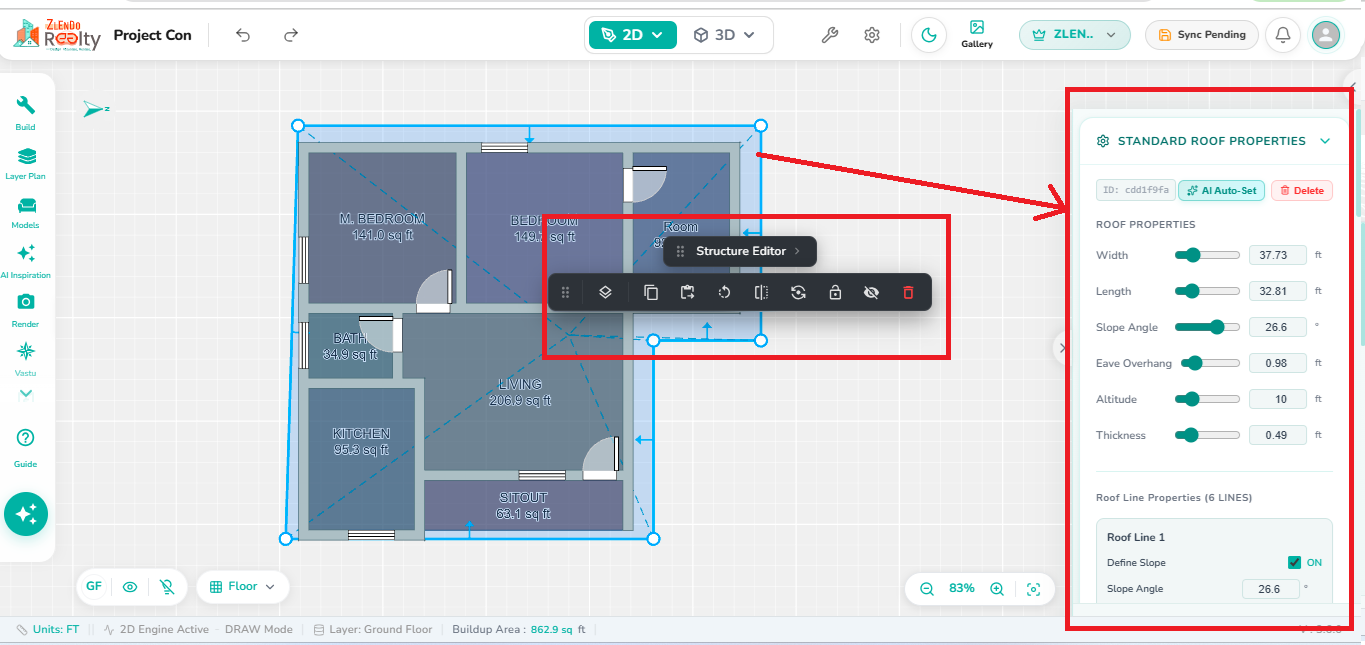

To customize a structural (load bearing or framework) element such as a column, pillar, beam, staircase, or false ceiling, click Structure Editor from the floating action bar.

Verify the Component Structural Layer

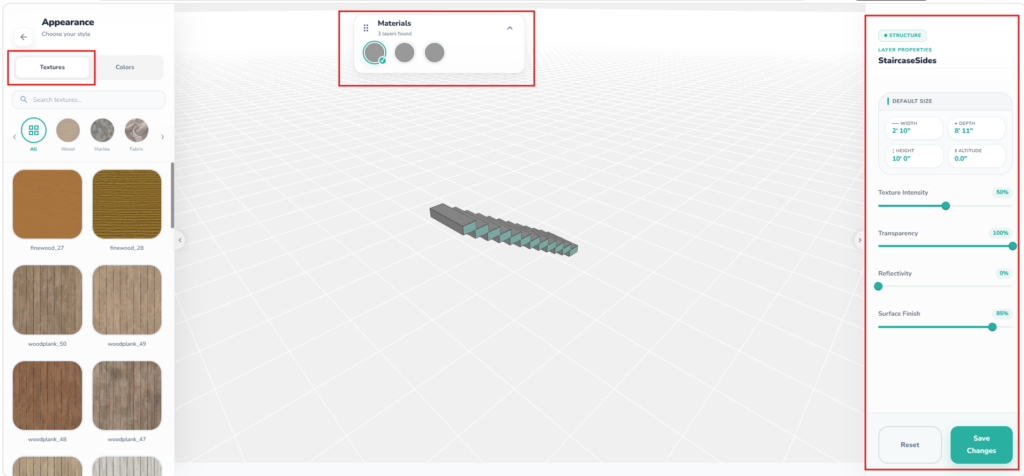

Look at the top-center Materials floating badge to view/select the active component layers detected on your structural block (e.g., 1 layer).

Click on a layer to activate it. The right-hand panel confirms the specific Layer Properties for the chosen layer. Use this box to change any dimensional detail.

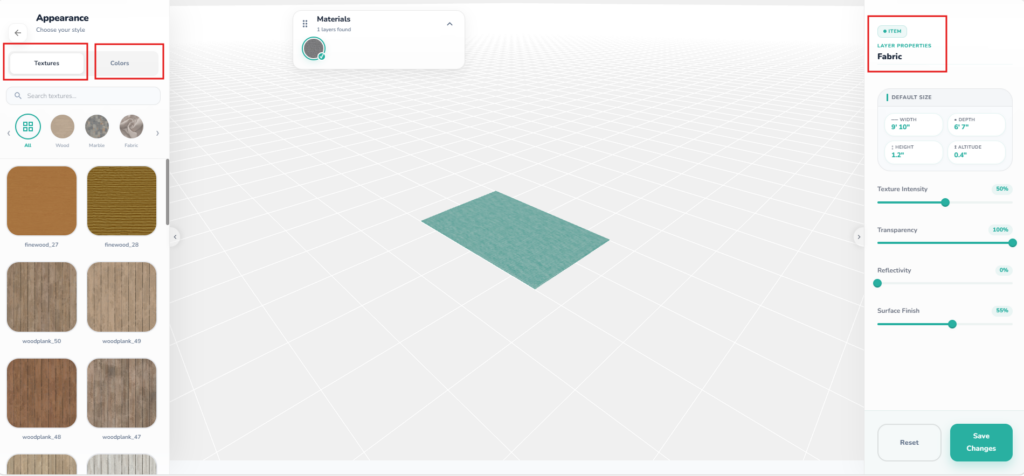

Choose Your Finish Path (Textures vs. Colors)

Use the left-hand Appearance sidebar panel to define the architectural finishes:

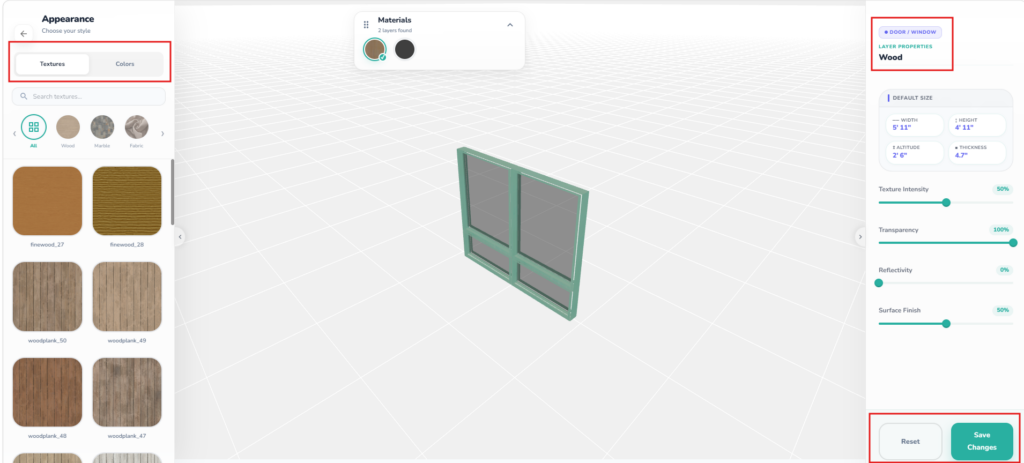

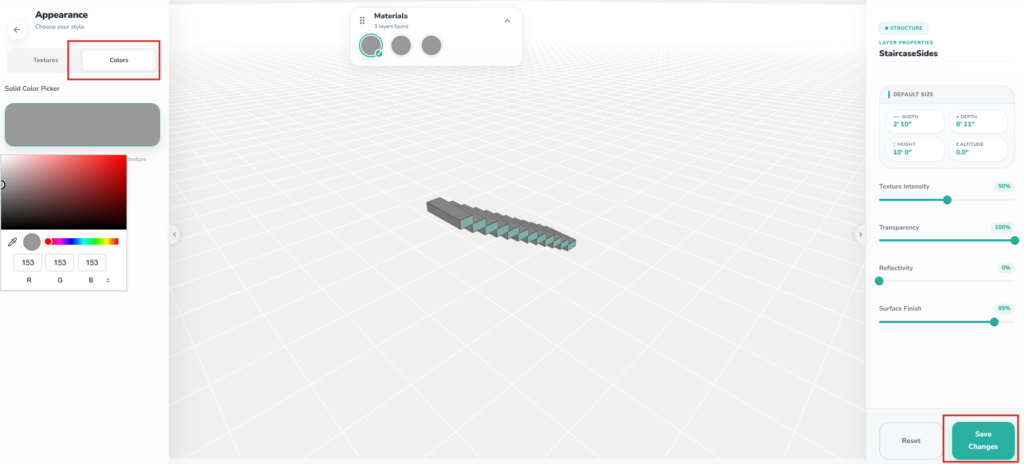

Textures Tab: Browse through professional building material categories including Wood, Marble, Fabric, or industrial finishes like concrete and brick. Click any swatch to instantly wrap the texture around your column, beam, or step geometry.

Colors Tab: Open the Solid Color Picker palette to apply uniform solid coats. You can adjust the visual canvas spectrum, manipulate the rainbow hue slider, or enter exact R / G / B coordinates to implement precise brand paint specs.

Refine Advanced Surface Parameters

To mimic real-world building materials accurately under environmental lighting, fine-tune the parameter sliders in the right panel:

Texture Intensity: Adjusts the visual pop, depth, and roughness profile of the material grain.

Transparency: Sets the alpha-transparency level (typically locked at 100% for load-bearing structures).

Reflectivity: Dictates the surface light bounce (e.g., lower for raw concrete or matte brick, higher for polished stone pillars or metallic beams).

Surface Finish: Balances the outer texture layer between a textured flat matte and a clear glass-smooth gloss finish.

Save or Discard Changes

Reset: Flushes out recently selected paint hues or material swaps, reverting the structural asset back to its default library import values.

Save Changes: Click the green button to permanently apply your custom material maps to the structure and return cleanly to your main layout canvas.

🪵Advanced Floor & Ceiling Editor #

Changing Flooring Textures & Color #

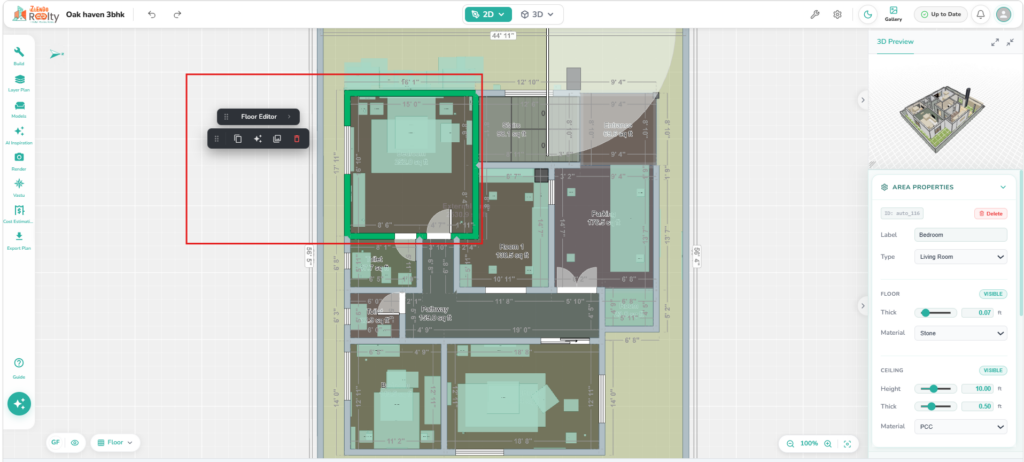

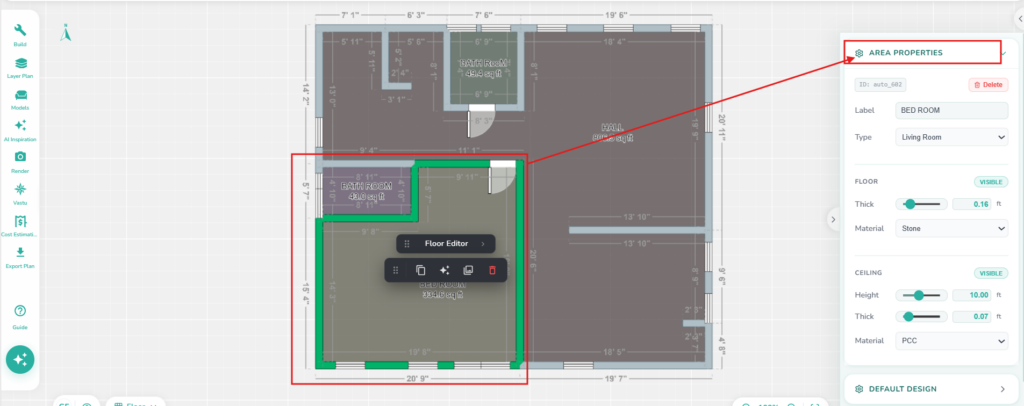

When you select an enclosed room area on your floorplan and click on the advanced Floor Editor from the floating toolbar, Zlendo Realty opens a focused drafting environment dedicated entirely to ground-surface styling and dimensional boundaries.

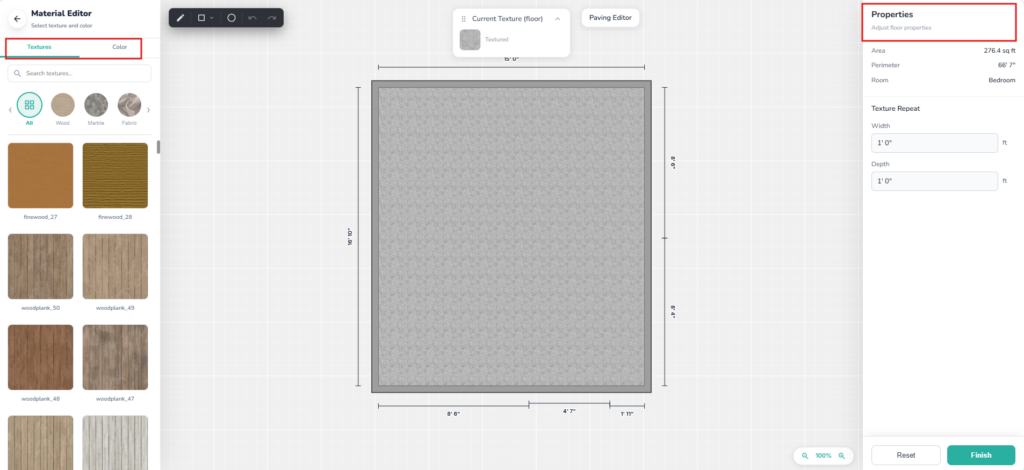

Review Spatial Metrics & Properties

Inside the Advanced editor interface, the right-hand Properties panel displays accurate architectural data calculated from your 2D floor plan:

Area: Displays the total square footage of the enclosed space (e.g., 276.4 sq ft).

Perimeter: Tracks the exact linear running distance of the room’s boundary walls.

Room: Displays the classification label assigned to the space (e.g., Bedroom, Living Room).

Browse and Select Flooring Material

Use the left sidebar repository to pick the fundamental design finish for your floor:

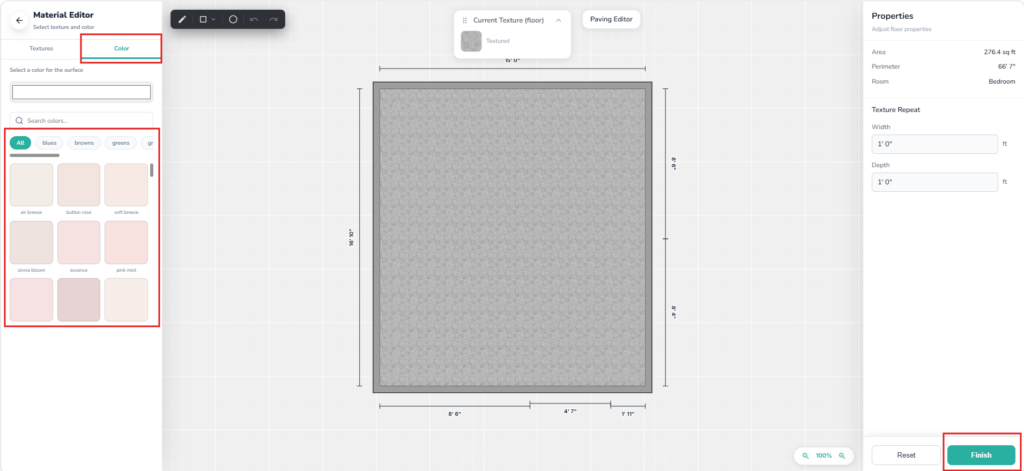

Textures Tab: Browse through categorized flooring materials like Wood, Marble, or Fabric. Click any material swatch to immediately fill the layout canvas preview.

Color Tab: Switch to this tab to apply a solid, uniform color tone or paint finish across the deck area.

Current Texture Indicator: Located at the top-center of the screen, this floating badge provides an instant visual reference of the active material pattern.

Refine Pattern Scaling (Texture Repeat)

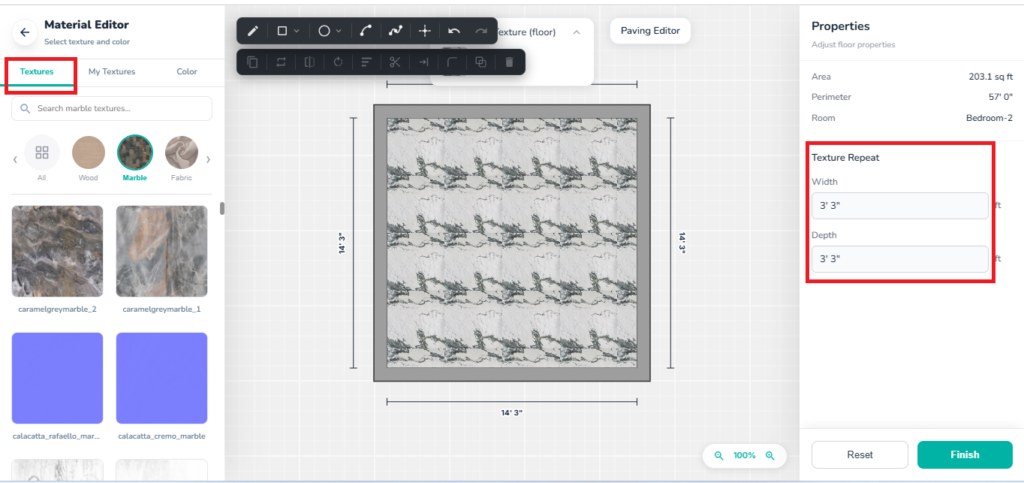

To make sure large-scale materials like wood planks or stone tiles look perfectly true-to-scale, adjust the distribution parameters under the Texture Repeat section in the right-hand panel:

Width: Controls the horizontal tiling span of the texture pattern before it loops.

Depth: Controls the vertical run density of the texture layout.

Working with the Floor Paving Tool #

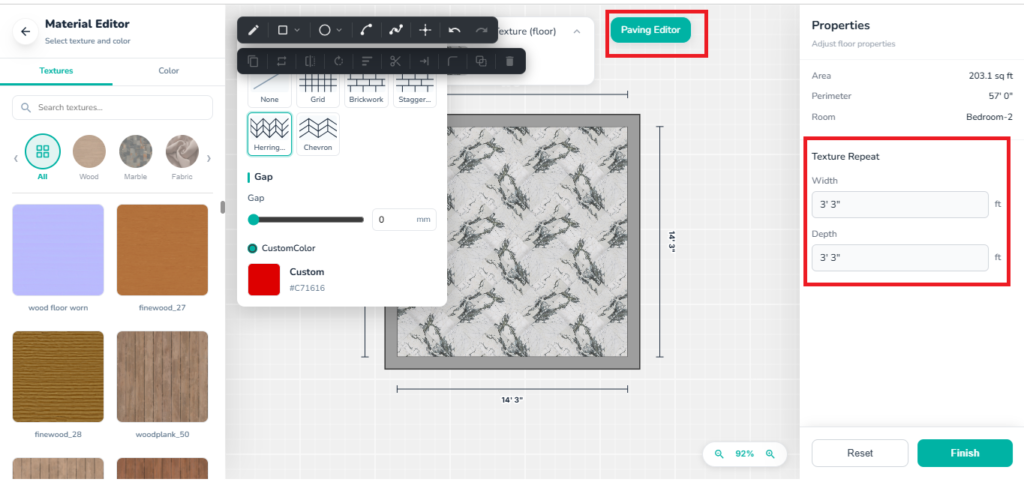

When configuring flooring designs in the Advanced Floor Editor, you can use the Paving Editor tool to overlay complex tile patterns, brick arrangements, and grout details onto your surface texture. This sub-editor, highlighted in 2.0 Floor -Adv Paving editor.jpg, lets you break away from basic uniform textures to design intricate, realistic tiled or paved layouts.

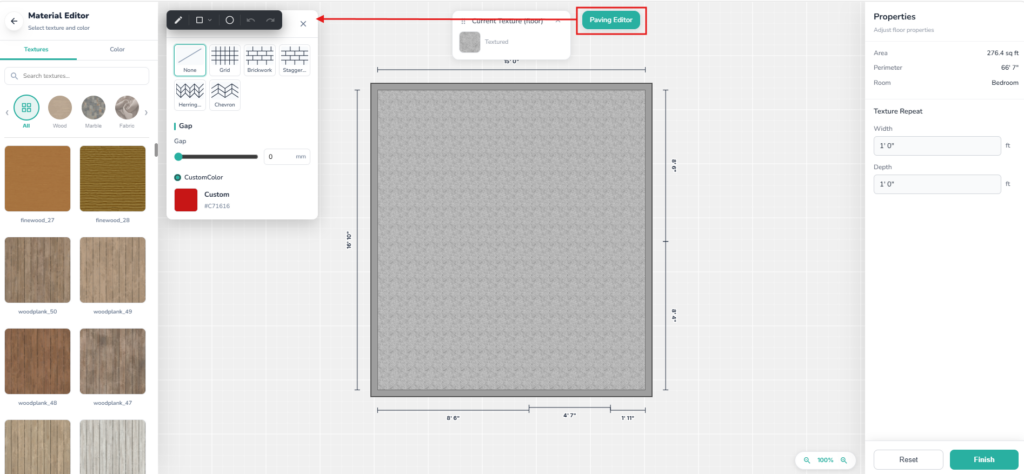

Open the Paving Sub-Menu

Locate the Paving Editor button on the top-center toolbar next to your active texture indicator.

Clicking this button opens a floating configuration panel inside the Advanced Floor Editor.

Select a Paving Pattern Matrix

Choose how your tiles or paving materials are structured by selecting one of the standard architectural pattern profiles at the top of the panel:

– None: Keeps the floor texture as a singular, unbroken material sheet.

– Grid: Aligns materials in a classic, straight stacked tile grid layout.

– Brickwork: Arranges tiles in a traditional running-bond staggered brick layout.

– Staggered: Offsets grid boundaries continuously for a modern dynamic floor flow.

– Herringbone / Chevron: Tilts and interlocks materials at precise angles—perfect for parquet hardwood flooring or premium backsplash aesthetics.

Calibrate Grout Line Gaps

Fine-tune the spaces between individual paved blocks under the Gap section of the floating panel:

Gap Slider: Drag the slider or type an exact value in millimeters (e.g., 0 mm) to shrink or expand the grout joint line widths. This gives you absolute control over tile-to-tile spacing.

Apply a Custom Grout Color

Under the Custom Color toggle, click the Custom color patch box.

This opens your palette to define the exact hex code or color value (e.g., #EFEBEB) for your grout lines, allowing you to create sharp contrast or seamless blends between your paving blocks.

Save or Reset Your Layout

Reset: Click the white button at the bottom right to discard any texture adjustments or tile alignments made during this session.

Finish: Click the green button to lock in your custom flooring design and return seamlessly to the main 2D layout workspace.

🏛️ Advanced Ceiling Editor #

The Advanced Ceiling Editor allows you to fine-tune overhead surface aesthetics, balance material distributions, and audit structural space parameters with high precision.

Changing Ceiling Textures & Colour #

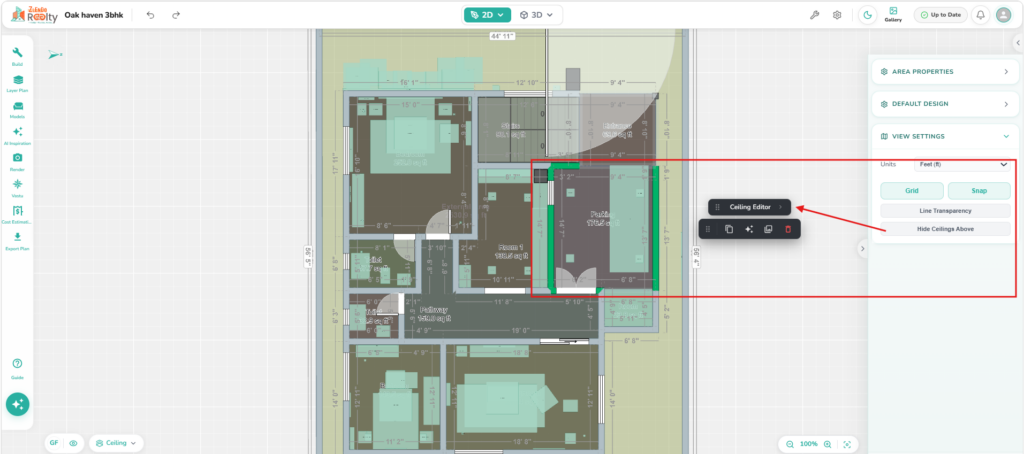

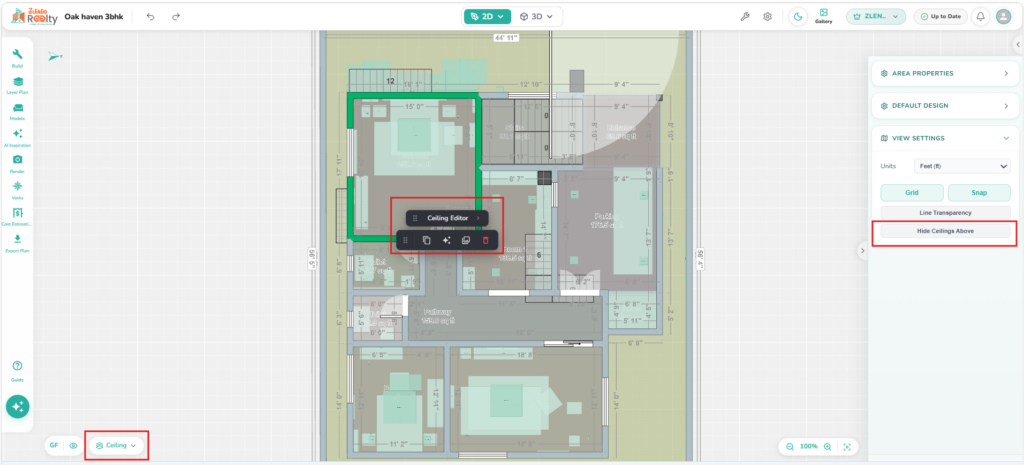

To edit a room Ceiling, select the Ceiling option in the Layers tab on the bottom-left of the main workspace. Also ensure the Hide Ceiling Above button on the right-side panel View Settings is disabled then click on the room ceiling you want to edit.

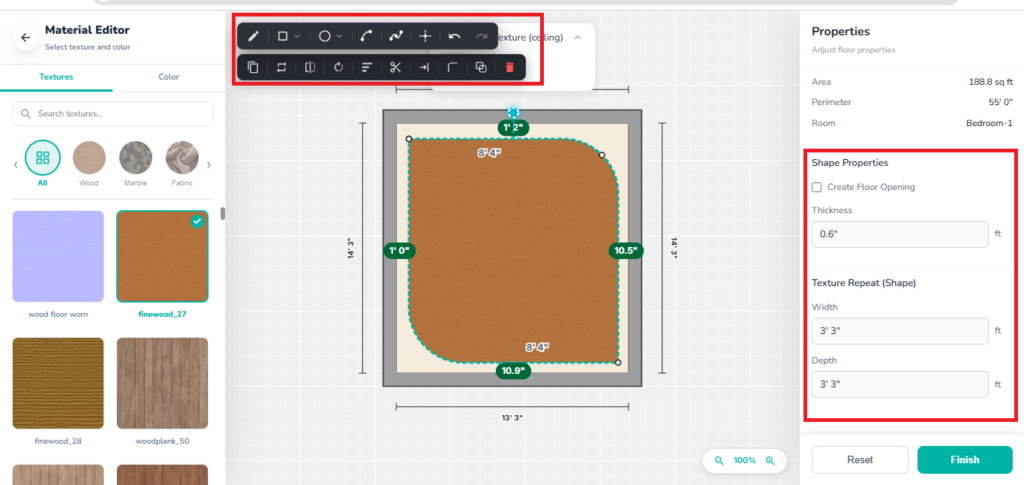

Review Spatial Metrics & Properties

On the right side of the Advanced Ceiling editor, the Properties panel instantly populates with accurate structural metrics derived from your main floor plan:

Area: Displays the total square footage of the active ceiling surface plane (e.g., 197.1 sq ft).

Perimeter: Tracks the exact running boundary distance along the supporting walls (e.g., 56' 4").

Room: Verifies the functional classification tag of the space (e.g., Bedroom).

Select an Aesthetic Finish (Textures vs. Colors)

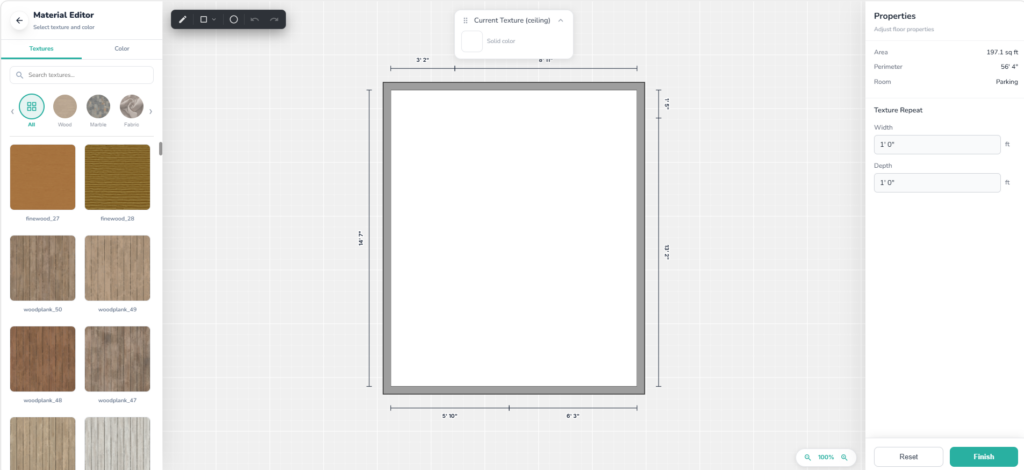

Use the left-hand Appearance sidebar layout visible in Ceiling editor to edit the design finish:

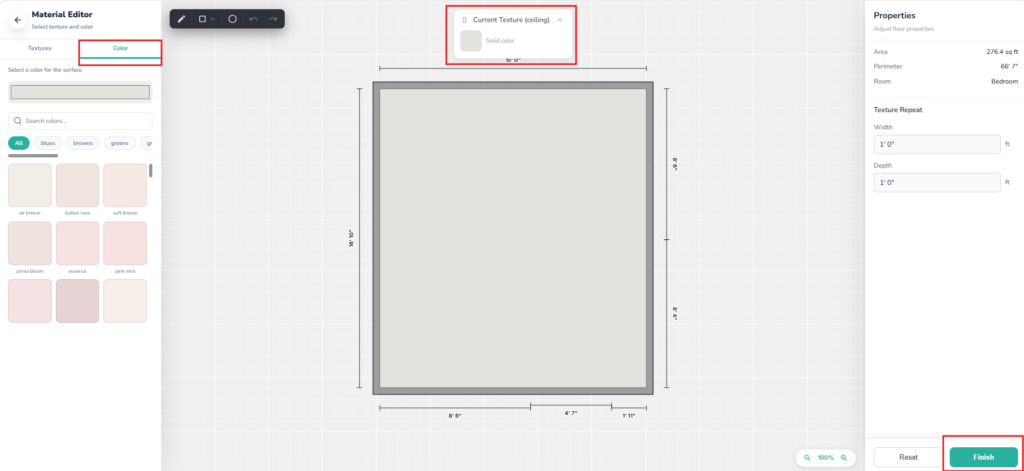

Textures Tab: Browse through professional categories like Wood, Marble, or Fabric. Click any pattern card (such as finewood_27 or woodplank_50) to wrap the pattern onto the canvas.

Color Tab: Switch here to pull open a custom palette for a solid, uniform paint finish.

Current Texture Indicator: Monitor the floating badge centered at the top of the workspace (Current Texture (ceiling)) to quickly audit your active selections.

Refine Pattern Scaling (Texture Repeat)

To ensure structural materials look perfectly true-to-scale across the overhead expanse, adjust the mapping constraints found under the Texture Repeat menu block:

Width: Controls the horizontal tiling span of your selected texture pattern.

Depth: Controls the vertical run density of the layout pattern.

Step 4: Finalize or Revert Your Workspace Changes

Reset: Click the white button located at the lower right to drop your pending design changes and start fresh.

Finish: Click the green button at the bottom right corner of the screen to lock in your custom ceiling design and return seamlessly to your main project file.
